FAAC -3351 425D to E024U Control Board Upgrade Kit UL325-2016 - FAAC 3351.1

Details

FAAC -3351 425D to E024U Control Board Upgrade Kit UL325-2016 - FAAC 3351.1

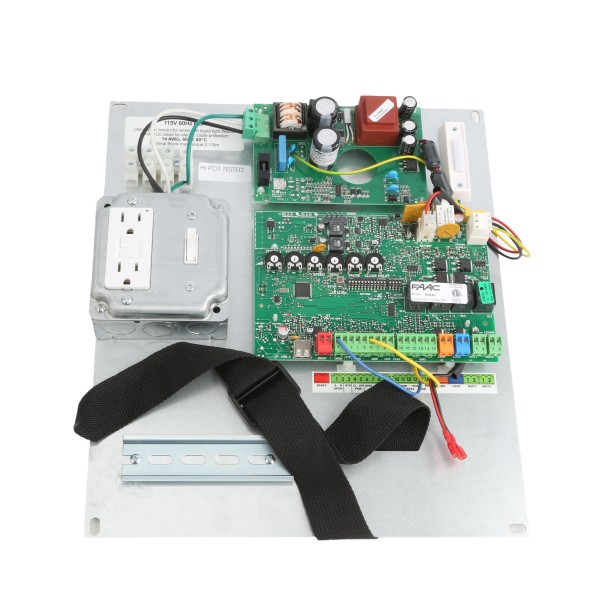

FAAC -3351 Upgrade the 425D control board to the E024U control board with this handy kit. Proudly designed and manufactured by FAAC.

Kit Includes:

• 16" x 14" Backplate
• E024U Control Board
• Power Supply
• Battery Cable

FAAC -3351 E024U Control Board Features:

• UL325 and UL991 safety standard compliant
• Powerful and efficient switching power supply
• Easy programming with trimmers and dip switches
• One pushbutton automatic time learning
• Self resetting fuses
• Built in battery backup
• Low current idle mode to preserve battery
• Opening and closing delays selectable for overlapping gates
• Speed and force adjustable with trimmers
• Control board firmware upgradable via USB
• Solar powered option

Technical Specs:

• Input Voltage: 115 VAC (+10% -6%)
• Input Power: 400 W max - 4W stand by
• Motor Output Current Max: 7 A
• Accessory Power: 24 Vdc - 500 mA
• Operating Temperature: -4°F to 131°F (-20°C to +55°C)
• Dimensions: 17.5 x 15.5 x 6.2 in (445x393x157mm)
• Protection Class: NEMA type 3, 3R, 4, 4X, 12 and 13

This product is a direct replacement for the FAAC -3351.
