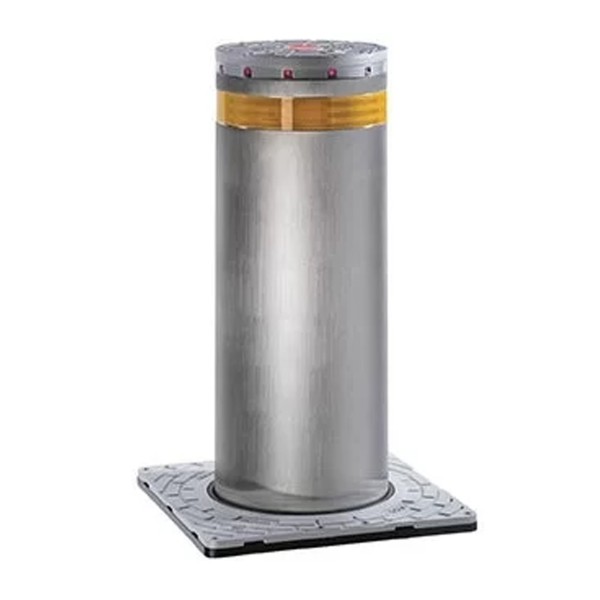

FAAC J275 Hydraulic-Automatic 2K20 Crash-Rated Bollard (800mm) - Painted Steel

Details

FAAC J275 Hydraulic-Automatic 2K20 Crash-Rated Bollard (800mm) - Painted Steel

The FAAC J275 Hydraulic-Automatic 2K20 Bollard is engineered to provide robust security in sensitive areas, effectively controlling vehicular access and protecting critical infrastructures. This automatic retractable bollard is capable of stopping a 7,500 kg (16,500 lbs) truck traveling at 48 km/h (30 mph) in a double-unit configuration, making it ideal for high-security applications. The hydraulic mechanism ensures smooth and reliable operation, integrating seamlessly with existing access control systems. Its 800mm height and painted steel construction offer a formidable barrier while maintaining aesthetic appeal.

Please note: you must purchase both the bollard and the required parts for proper & functional installation. You may then also choose optional accessories.

Key Features:

• Certified to PAS 68 and IWA 14-1 standards for high-impact resistance
• Hydraulic automatic operation suitable for frequent use
• Integrated hydraulic unit simplifies installation and maintenance
• Equipped with flashing LED lights and an acoustic buzzer for enhanced visibility and safety

Specifications:

• Model: J275
• Painted Steel (Dark Grey RAL 7021)
• Type (Operation): Hydraulic-Automatic
• Height: 800 mm
• Cylinder Diameter: 275 mm
• Rise Time: Approximately 8 seconds
• Descent Time: Approximately 4.5 seconds
• Crash Rating: M30 (with at least 2 bollard installed)
• Input Voltage: 220-240V AC, 50/60Hz
• Reflective Strip Color: White
• Manual Lowering Operation: Yes, via hydraulic manual override with encrypted key
• Manual Lowering Operation: Anti-tamper head with security lock
• Protection Class: IP67
