FAAC 844 ER Parts

Simply click on the part number for your desired part in the diagram or the corresponding part button below the diagram to be taken to that parts product page.

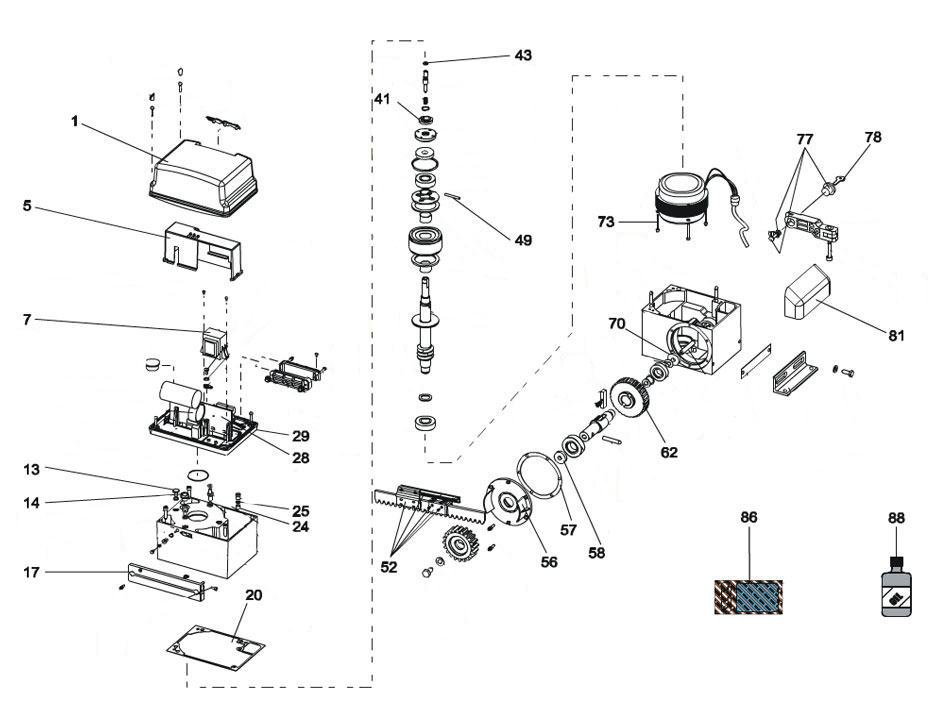

Part Diagram Cover for 844 - FAAC 7273425 Cover 746/844 Control Board '03 Version - FAAC 7273435 Transformer 746/844 use w/ 780D Board - FAAC 7501365 Nut Motor Fixing - FAAC 7029055 Oil Plug Filler Cap - FAAC 7110015 Limit Switch 746/844 (Magnetic) - FAAC 7580375 Gasket - FAAC 7099645 Gasket for Electric Cord (All non UL Operators) - FAAC 7099245 Packing Ring for Strain Relief - FAAC 7043355 780D Control Board for 746 ER - FAAC 7909212 Cover Base 746 for use w/780D Control Board - FAAC 7273405 Magnetic Disc - FAAC 7226605 O-Ring (6.75 x 1.78 mm) - FAAC 7090030015 Pin 5 x 40 M6 UNI 100 C6 - FAAC 7061185 Stroke End Unit - FAAC 63000355 Side Flange - FAAC 71707615 Gasket for Bearing Carrier - FAAC 7094085 Gasket for Bearing Carrier - FAAC 7093005 Gear Ring - FAAC 7192075 Gasket 10 x 30 x 7 - FAAC 7093055 Tie Rod Stator Fixing - FAAC 7230145 Cylinder Lock - FAAC 7120885 Manual Release Key - FAAC 7131005 Foundation Plate Protection - FAAC 7271975 Skin Pack - FAAC 3905745 FAAC Oil 1 Quart - FAAC 714019 Qt.1
