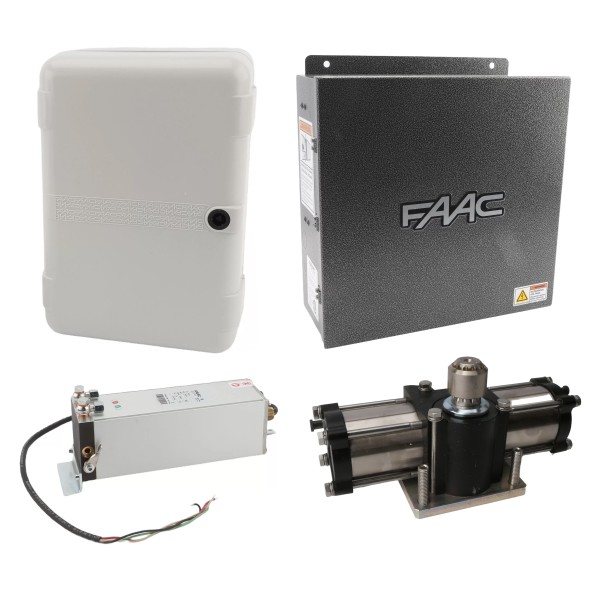

FAAC 750 CBAC 220V 100 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-220-100

FAAC 750 CBAC 220V 100 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-220-100

Name: FAAC 750 CBAC 220V 100 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-220-100
Brand: FAAC International Inc.
SKU: 750CPMA-220-100
Availability: InStock

FAAC 750 CBAC 220V 100 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-220-100

This FAAC Single 750 CBAC package is designed for gates needing a 100-degree swing range with reliable hydraulic performance. The below-ground operator blends discreetly into the landscape while supporting gates up to 13 feet and 1,700 pounds. Complete with a control board, photocells, hoses, connectors, and a foundation plate, it’s a ready-to-use solution for residential and light commercial entrances. Below are the lists of products you'll need for a single or dual system:

For a Single Pump Motor Assembly

(1) XP30 Photocell Conduit Connection Mount Adapter
(1) XP30 Wide‑Range Photobeam Photocells (Pair)
(1) Flexible Hydraulic Hose 33 ft. (10 m) for FAAC 750
(1) Flex Hose Connector Kit for 750 (Bag of 4)
(1) Foundation Plate for 750 Gate Opener
(1) FAAC 455D Control Board with Metal Enclosure (115V)
(1) Model 750 100‑Degree Drive Unit
(1) 750 CBAC In‑Ground Hydraulic Pump/Motor Assembly with Steel Enclosure (230V)

For a Dual Pump Motor Assembly

(2) XP30 Photocell Conduit Connection Mount Adapter
(1) XP30 Wide‑Range Photobeam Photocells (Pair)
(2) Flexible Hydraulic Hose 33 ft. (10 m) for FAAC 750
(2) Flex Hose Connector Kit for 750 (Bag of 4)
(2) Foundation Plate for 750 Gate Opener
(1) FAAC 455D Control Board with Metal Enclosure (115V)
(2) Model 750 100‑Degree Drive Unit
(2) 750 CBAC In‑Ground Hydraulic Pump/Motor Assembly with Steel Enclosure (230V)

1 Swing Gate Opener Parts
Flex Hose Connector Kit for 750 ‑ FAAC 390421.5 Part: 390421.5	$61.78 each $61.78 each
Flexible Hydraulic Hose 33 ft. (10m) for FAAC 750 Swing Gate Operators ‑ FAAC 390422 Part: 390422	$106.33 each $106.33 each
750 CBAC In‑Ground Hydraulic Pump Motor Assembly with Enclosure (230V) ‑ 1077251_5 (Previously: 1077251.5) Part: 1077251_5	$794.18 each $794.18 each
FAAC Hydraulic Drive Motor 100 Degree Drive Unit for 750 ‑ FAAC 108757 Part: 108757	$822.69 each $822.69 each

2 Photo Eyes
FAAC XP30 Wide‑Range Photocells (Pair) ‑ FAAC 785105 Photo Eye Through Beam Photocells for Gate Opener Safety Part: 785105	$186.52 each $186.52 each
XP30 Photo Eye Conduit Connection Mount Adapter for Gate Opener Safety ‑ FAAC 401064 Part: 401064	$17.56 each $17.56 each

3 FAAC Control Boards and Enclosures
FAAC 455D 115V With Metal Enclosure ‑ 455D115.1 Part: 455D115.1	$919.52 each $919.52 each

4 Gate Opener Mounting Equipment
Foundation Plate for 750 Gate Opener ‑ FAAC 737607 Part: 737607	$50.49 each $50.49 each

Details

FAAC 750 CBAC 220V 100 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-220-100

The FAAC Single 750 CBAC 100‑Degree Pump Motor Assembly Kit with Steel Enclosure combines the 750 in‑ground hydraulic system with a matched 100‑degree drive unit, 455D control center, XP30 safety photocells, hydraulic hoses, and foundation plate to form a complete swing gate package. With the mechanism hidden below grade, the 750 operator delivers smooth gate travel while maintaining clean entrance aesthetics. The 100‑degree drive unit is a fit for properties that need reliable swing movement without requiring a full 180‑degree arc, while the 455D board coordinates movement for a refined operation. XP30 photocells provide a wide detection field to enhance safety, and the kit’s hoses and connectors simplify hydraulic routing. Designed for single leaf gates up to 13 feet and 1,700 pounds, this package is a ready solution for homeowners, estates, and light commercial entries looking for a balanced blend of power and subtle design.

Features

In‑ground design for a hidden appearance at the gate
Hydraulic system with self‑lubrication and quiet movement
Hydraulic lock holds the gate in both open and closed positions
100‑degree drive unit for controlled, moderate swing range
XP30 wide‑range photocells with channel options to avoid interference
Foundation plate included for a stable base
455D control board housed in a metal enclosure

Specifications

Operator Series: 750 CBAC, in‑ground hydraulic
Input Voltage (pump/motor): 230 VAC
Power: 220 W
Pump Flow Rate: 0.75 liters per minute
Motor Speed: 1400 rpm
Operating Ambient Temperature: 4 - 131 degrees F (-20 - +55 C)
Protection Class: IP55
Thermal Protection: 248 degrees F (120 C)
Use Frequency: 45 cycles per hour
Typical Gate Capacity: up to 13' and 1,700lbs per leaf
Photocell Range: up to 100'
Control Board Input: 115 VAC (455D in metal enclosure)
Operator Dimensions (pump/motor enclosure): 9.6" × 13.9" × 5.5" (245 × 353 × 141 mm)

Prefer to Call? (888) 378-1037

Questions about part number 750CPMA-220-100?

Required Fields *

SKU	750CPMA-220-100
Manufacturer	FAAC International Inc.
Kit Includes	Conduit Adapter, Control Board w/ Enclosure, Drive Unit, Foundation Plate, Hose Connector Kit, Hydraulic Hose, Photobeam Photocell(s), Pump/Motor
UL325 Compliant Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More	Class I, Class II, Class III, Class IV
Operator Type	Swing Gate Operator
Operator Series	750 CBAC
