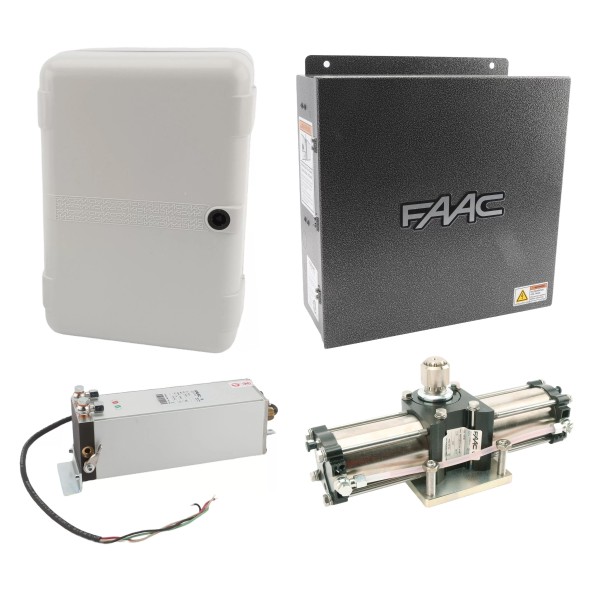

FAAC 750 CBAC 220V 180 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-220-180

FAAC 750 CBAC 220V 180 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-220-180

Name: FAAC 750 CBAC 220V 180 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-220-180
Brand: FAAC International Inc.
SKU: 750CPMA-220-180
Availability: InStock

FAAC 750 CBAC 220V 180 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-220-180

This FAAC Single 750 CBAC kit brings together everything needed to power and support a smooth 180-degree swing gate system. It includes the in-ground hydraulic pump motor assembly, drive unit, control board, photocells, hoses, and mounting accessories for a complete package. Designed for reliable daily use, this kit offers a clean below-ground look while handling heavy gate panels with ease. Below are the lists of products you'll need for a single or dual system:

For a Single Pump Motor Assembly

(1) XP30 Photocell Conduit Connection Mount Adapter
(1) XP30 Wide‑Range Photobeam Photocells (Pair)
(1) Flexible Hydraulic Hose 33 ft. (10 m) for FAAC 750
(1) Flex Hose Connector Kit for 750 (Bag of 4)
(1) Foundation Plate for 750 Gate Opener
(1) FAAC 455D Control Board with Metal Enclosure (115V)
(1) Model 750 180‑Degree Drive Unit
(1) 750 CBAC In‑Ground Hydraulic Pump/Motor Assembly with Steel Enclosure (230V)

For a Dual Pump Motor Assembly

(2) XP30 Photocell Conduit Connection Mount Adapter
(1) XP30 Wide‑Range Photobeam Photocells (Pair)
(2) Flexible Hydraulic Hose 33 ft. (10 m) for FAAC 750
(2) Flex Hose Connector Kit for 750 (Bag of 4)
(2) Foundation Plate for 750 Gate Opener
(1) FAAC 455D Control Board with Metal Enclosure (115V)
(2) Model 750 180‑Degree Drive Unit
(2) 750 CBAC In‑Ground Hydraulic Pump/Motor Assembly with Steel Enclosure (230V)

1 Swing Gate Opener Parts
180 Degree Drive Unit for 750 ‑ FAAC 108758 Part: 108758	$947.43 each $947.43 each
Flex Hose Connector Kit for 750 ‑ FAAC 390421.5 Part: 390421.5	$61.78 each $61.78 each
Flexible Hydraulic Hose 33 ft. (10m) for FAAC 750 Swing Gate Operators ‑ FAAC 390422 Part: 390422	$106.33 each $106.33 each
750 CBAC In‑Ground Hydraulic Pump Motor Assembly with Enclosure (230V) ‑ FAAC 1077251.5 Part: 1077251.5	$794.18 each $794.18 each

2 Gate Opener Mounting Equipment
Foundation Plate for 750 Gate Opener ‑ FAAC 737607 Part: 737607	$50.49 each $50.49 each

3 Photo Eyes
FAAC XP30 Wide‑Range Photocells (Pair) ‑ FAAC 785105 Photo Eye Through Beam Photocells for Gate Opener Safety Part: 785105	$186.52 each $186.52 each
XP30 Photo Eye Conduit Connection Mount Adapter for Gate Opener Safety ‑ FAAC 401064 Part: 401064	$17.82 each $17.82 each

4 FAAC Control Boards and Enclosures
FAAC 455D 115V With Metal Enclosure ‑ 455D115.1 Part: 455D115.1	$919.51 each $919.51 each

Details

FAAC 750 CBAC 220V 180 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-220-180

The FAAC Single 750 CBAC 180‑Degree Pump Motor Assembly Kit with Steel Enclosure brings the 750 in‑ground system together with its matching 180‑degree drive unit, 455D control board, XP30 safety photo eyes, hydraulic lines, and a foundation plate so the whole setup works as one. Hidden below grade, the 750 keeps sightlines clean and delivers smooth, quiet movement that suits residences, estates, and community entrances. The 180‑degree drive unit provides wide swing capability for tight approaches, while the 455D board manages starts and stops for a refined feel. XP30 photocells add a wide sensing range to help protect people and vehicles, and the included hoses and connectors make routing hydraulic lines simple. If you want an in‑ground package that pairs a clean look with consistent day‑to‑day performance, this kit checks all the boxes.

Features

In‑ground design for a low‑profile look at the gate
Quiet, self‑lubricating hydraulic system with separate pump/motor and drive unit
Hydraulic lock holds the leaf in both the open and closed positions
Wide 180‑degree swing capability using the matching 750 drive unit
XP30 through‑beam photocells with reach up to 100 ft and channel selection to reduce interference
Foundation plate included to set a stable base for the operator
455D control board in metal enclosure for tidy control wiring

Specifications

Operator Series: 750 CBAC, in‑ground hydraulic
Input Voltage (pump/motor): 230 VAC
Power: 220 W
Pump Flow Rate: 0.75 Liters per minute
Motor Speed: 1400 RPM
Operating Ambient Temperature: 4 - 131 degrees F (-20 - +55 C)
Protection Class: IP55
Thermal Protection: 248 degrees F (120 C)
Use Frequency: 45 cycles per hour
Typical Gate Capacity: up to 13' and 1,700lbs per leaf
Photocell Range: up to 100'
Control Board Input: 115 VAC (455D in metal enclosure)
Operator Dimensions (pump/motor enclosure): 9.6" × 13.9" × 5.5" (245 × 353 × 141 mm)

Prefer to Call? (888) 378-1037

Questions about part number 750CPMA-220-180?

Required Fields *

SKU	750CPMA-220-180
Manufacturer	FAAC International Inc.
Kit Includes	Conduit Adapter, Control Board w/ Enclosure, Drive Unit, Foundation Plate, Hose Connector Kit, Hydraulic Hose, Photobeam Photocell(s), Pump/Motor
UL325 Compliant Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More	Class I, Class II, Class III, Class IV
Operator Type	Swing Gate Operator
Operator Series	750 CBAC
