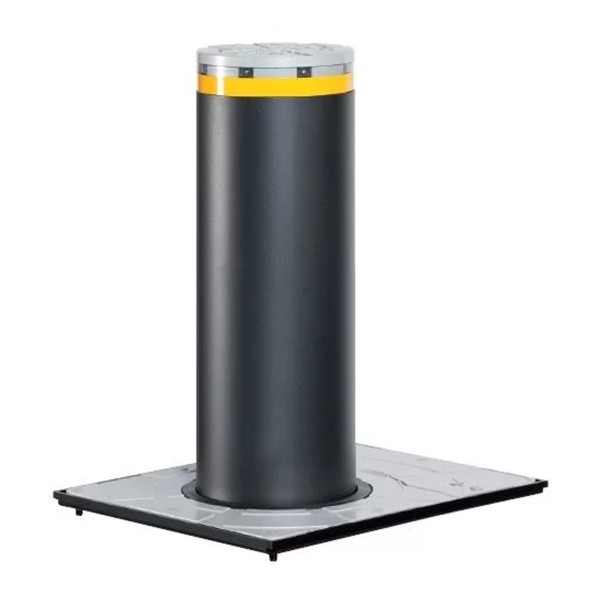

J200 F Fixed H600 Residential Traffic Control Security Bollard (Stainless Steel) - FAAC 116507

The FAAC J Series Fixed Bollard for Traffic Control is built for the control of traffic in residential areas. Only minimal excavation is required to install this AISI 316L grade stainless steel permanent fixture.
Part Number: 116507
$2,053.08 each
$2,053.08 each
OR


Details

J200 F Fixed H600 Residential Traffic Control Security Bollard (Stainless Steel) - FAAC 116507

The J200 F 600 is a fixed access control bollard. Designed and manufactured by FAAC, this bollard is built for the control of traffic in residential areas. Only minimal excavation is required to install this permanent fixture. This bollard is designed for use with other automatic or semi-automatic bollards in areas where multiple automatic installations are not necessary. The J200 model is made from sturdy AISI 316L grade stainless steel and treated with a satin finish.

The J200 F model is most efficiently used in tandem with the J200 HA series and J200 SA series bollards. The automatic J200 HA bollard is a vital installation wherever accessibility is as important as traffic control. Similarly, the J200 SA is a convenient alternative to the J200 HA as it does not require an electrical connection and is also retractable via key operation.

Features:

  • Cylinder in stainless steel thickness 0.24 in (6 mm) satin finish
  • Supporting structure to be cemented, cataphoresis treatment (pit not required)
  • Power supply and wiring not required
  • Simple installation and limited digging operations
  • Aesthetically consistent with other retractable bollards in mixed installations
  • Easy to transport, store and install, thanks to the limited weight of the product

Technical Specs:

  • Cylinder height: 23.6 in (600 mm)
  • Cylinder diameter: 7.9 in (200 mm)
  • Cylinder material, standard version: Fe 360 steel 0.24 in (6mm) thickness
  • Standard cylinder surface treatment: Cataphoresis and polyester powder painted RAL 7021 metallic dark grey
  • Cylinder material, stainless steel version: AISI 316 satin finished 0.24 in (6mm) thickness
  • Cylinder head: Aluminium RAL 9006
  • Standard reflecting strip: Height 1 in (25 mm)

Optional Acessories:

Manual

CSI Specifications

Specifications



Installation Gallery

J200 Bollard Installation
J200 Bollard Installation
J200 Bollard Installation
SKU 116507
Manufacturer FAAC International Inc.
Model J200
Bollard Type Fixed
Height 23.6 in (600 mm)
Color Stainless Steel
