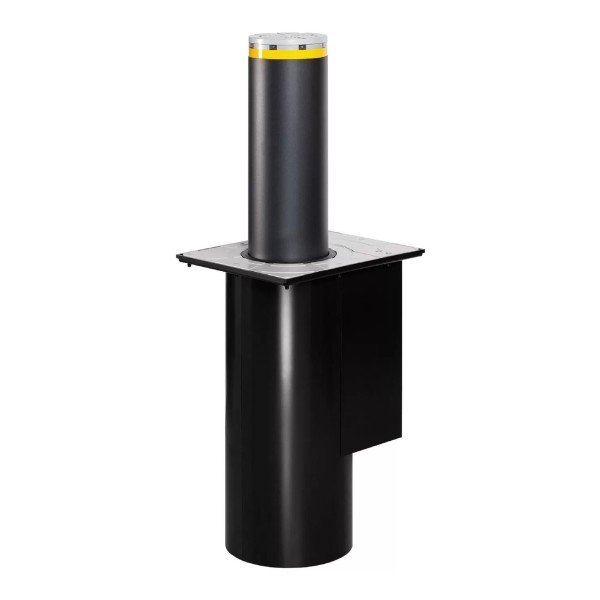

J200 HA H600 Hydraulic Automatic Retractable Residential Traffic Control Security Bollard (Painted Steel) - FAAC 116500

The J200 HA 600 is a hydraulically automatic retractable access control bollard. Designed and manufactured by FAAC, this bollard is built for the control of traffic in residential areas. For convenience, this bollard is automatically retractable and is operable by authorized personnel or through automatic commands. This model is designed for situations where a fixed bollard is not practical. The J200 model is made from sturdy S235JRG2 EN 10277 grade steel and treated with a cataphoresis coating and dark gray metalized RAL 7021 polyester powder paint.

The J200 HA is most efficient when used in tandem with the J200 F series and J200 SA series bollards. By incorporating fixed units with the J200 HA, traffic controlled areas keep their uniform aesthetics in areas where the functionality of the retractable models is not practical. The J200 SA is a convenient alternative to the J200 HA as it does not require an electrical connection and is also retractable via key operation.

Features:

• Steel cylinder, thickness 0.24 in (6 mm) cataphoresis treatment and painted
• Powder paint dark grey metallised RAL 7021
• Hydraulic lock in the up position (in the event of power a power outage) with special release key
• Support structure to be cemented, cataphoresis treatment (pit not required)
• Easy to transport, store and install, thanks to the self-supporting structure - pit not required - and to its limited weight
• A streamlined product, configurable by selecting the desired installation accessories
• Simplified maintenance (just one person is needed)
• Fast and silent movement

Technical Specs:

• Drive: Hydraulic operator
• Cylinder Stroke: 23.6 in (600 mm)
• Cylinder Diameter: 7.9 in (200 mm)
• Cylinder Material, standard version: Fe 360 steel 0.24 in (6mm) thickness
• Standard Cylinder surface treatment: Cataphoresis and polyester powder painted RAL 7021 metallic dark grey
• Cylinder Material, stainless steel version: AISI 316 satin finished 0.24 in (6mm) thickness
• Cylinder Head: Aluminium RAL 9006
• Rise Time: Approx. 5 sec
• Descent Time: Approx. 7 sec
• Input Voltage: 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
• Power: 230 W
• Protection Class: IP 67
• Recommended Use: Use in residential applications
• Reflecting Strip Height: 1 in (25 mm)
• Manual Lowering Operation: With hydraulic circuit mechanical release
• Operating Ambient Temperature: 5F to 131F (-15C / +55C)
• Operating Ambient Temperature with Heater (optional): -13F to 131F (-25C / +55C)
• Overall Dimensions: 16 x 20 x 32 in (400x500x800 mm)
• Connection Cable: Standard 16+1 conductor cables, minimum AWG 16 (not supplied)
• Max Length: 164 ft (50 m)

Optional Accessories:

• Pit Heater for J200HA - FAAC 116501
• Release Kit with Pressure Switch for J200HA - FAAC 116502
• JE275 Bollard Control Board - FAAC 116300
• Acoustic Buzzer for J200HA - FAAC 116503
• Pit Heater for J200HA - FAAC 116501
