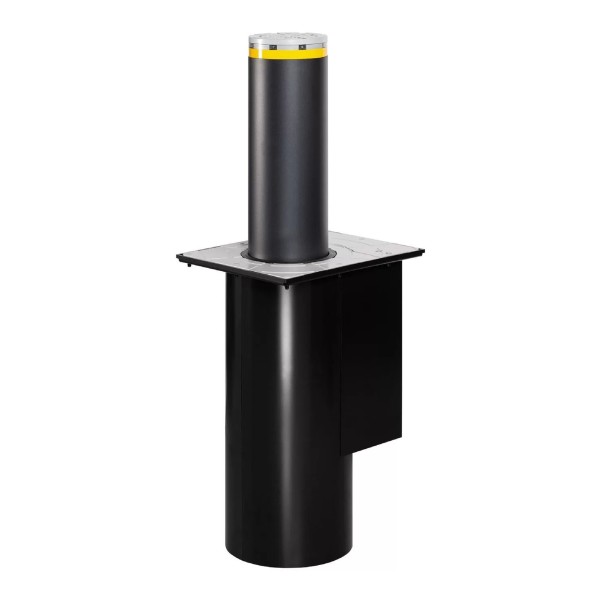

J200 HA H600 Hydraulic Automatic Retractable Residential Traffic Control Security Bollard (Stainless Steel) - FAAC 116505

The FAAC J200 HA 600 Automatic Retractable Bollard is perfect for traffic control in residential areas, the J200 HA bollard is easy to transport, store and install. This retractable automatic bollard features a stainless steel satin finish, self-supporting structure, and fast and silent movement.
Part Number: 116505
$5,616.00 each
$5,616.00 each
OR

Details

J200 HA H600 Hydraulic Automatic Retractable Residential Traffic Control Security Bollard (Stainless Steel) - FAAC 116505

The J200 HA is a hydraulically-automatic retractable access control bollard. Designed and manufactured by FAAC, this bollard is built for the control of traffic in residential areas. For convenience, this bollard is automatically retractable and is operable by authorized personnel or through automatic commands. This model is designed for situations where a fixed bollard is not practical. The J200 model is made from sturdy AISI 316L grade stainless steel and treated with a satin finish.

Features:

• Cylinder in stainless steel thickness 0.24 in (6 mm) satin-finished
• Hydraulic lock in the up position (in the event of power a power outage) with special release key
• Support structure to be cemented, cataphoresis treatment (pit not required)
• Easy to transport, store and install, thanks to the self-supporting structure - pit not required - and to its limited weight
• A streamlined product, configurable by selecting the desired installation accessories
• Simplified maintenance (just one person is needed)
• Fast and silent movement

Technical Specs:

• Drive: Hydraulic operator
• Cylinder Stroke: 23.6 in (600 mm)
• Cylinder Diameter: 7.9 in (200 mm)
• Cylinder Material, standard version: Fe 360 steel 0.24 in (6mm) thickness
• Standard Cylinder surface treatment: Cataphoresis and polyester powder painted RAL 7021 metallic dark grey
• Cylinder Material, stainless steel version: AISI 316 satin finished 0.24 in (6mm) thickness
• Cylinder Head: Aluminium RAL 9006
• Rise Time: Approx. 5 sec
• Descent Time: Approx. 7 sec
• Input Voltage: 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
• Power: 230 W
• Protection Class: IP 67
• Recommended Use: Use in residential applications
• Reflecting Strip Height: 1 in (25 mm)
• Manual Lowering Operation: With hydraulic circuit mechanical release
• Operating Ambient Temperature: 5F to 131F (-15C / +55C)
• Operating Ambient Temperature with Heater (optional): -13F to 131F (-25C / +55C)
• Overall Dimensions: 16 x 20 x 32 in (400x500x800 mm)
• Connection Cable: Standard 16+1 conductor cables, minimum AWG 16 (not supplied)
• Max Length: 164 ft (50 m)

Optional Accessories:

JE275 Bollard control Board - FAAC 116300
Acoustic Buzzer for J200HA - FAAC 116503
Pit Heater for J200HA - FAAC 116501
LED Lights Kit for J200 Bollards - FAAC 116504
Release Kit with Pressure Switch for J200HA - FAAC 116502

Manual

CSI Specifications

Specifications

CAD File



Installation Gallery

J200 Bollard Installation
J200 Bollard Installation
J200 Bollard Installation
Prefer to Call? (888) 378-1037

Questions about part number 116505?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 116505
Manufacturer FAAC International Inc.
Model J200
Bollard Type Automatic
Protection Class IP 67
Height 23.6 in (600 mm)
Input Voltage 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
Rise Time 5 sec
Color Stainless Steel
