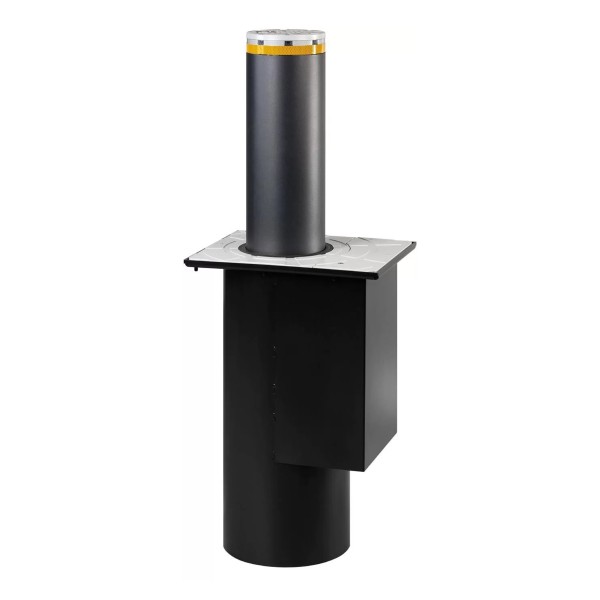

J200 SA H600 Hydraulic Semi-Automatic Retractable Bollard for Residential Traffic Control (Stainless Steel) - FAAC 116509
The J200 SA 600 Semi-Automatic Retractable Traffic Bollard by FAAC is built for the control of transit in residential areas. Constructed as an alternative solution to the automatic models, electrical power is not necessary for operation. This model is key-operated, gas-powered, and retractable by simply pushing on the head of the unit. The J200 model is made from sturdy AISI 316L grade stainless steel and treated with a satin finish.
The J200 SA is designed specifically for use in tandem with the J200 F and J200 HA models. By incorporating fixed units with the J200 SA, traffic controlled areas keep their uniform aesthetics in areas where the functionality of the retractable models is not practical. The J200 HA bollard, when used in conjunction with the J200 SA can allow for more versatile accessibility in situations where frequent manipulation of traffic control is required.
Features:
- Cylinder in stainless steel, thickness 5 mm satin finish
- Hydraulic lock in raised position (in the event of power failure) with special release key
- Supporting structure to cement, cataphoresis treatment (pit not required)
- Power supply and wiring not required
- Simple and safe movement, with easy to use unlocking key
- A streamlined product, configurable by selecting the desired installation accessories
- Easy to transport, store and install, thanks to the limited weight of the product
- Low position lock guaranteed against accidental release
- Simplified maintenance (just one person is needed)
Technical Specs:
- Model: J200SA H600
- Type of operator: Single-acting gas actuator
- Height of cylinder from ground: 23.6 in (600 mm)
- Cylinder diameter: 7.9 in (200 mm)
- Cylinder material type: Steel 316L satin finish; 0.24 in (6mm) thick
- Cylinder treatment type: Satin finish
- Head material type: Aluminium RAL 9006
- Release device: Key operated (supplied)
- Reflecting strip height: 1 in (25 mm)
- Standard reflecting strip color: Orange
- Dimensions WxDxH: 16 x 20 x 32 in (400x500x800 mm)
Optional Accessories:
Manual
Specifications
CSI Specifications
Installation Gallery
| SKU | 116509 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Model | J200 |
| Bollard Type | Semi-Automatic |
| Height | 23.6 in (600 mm) |
| Color | Stainless Steel |
