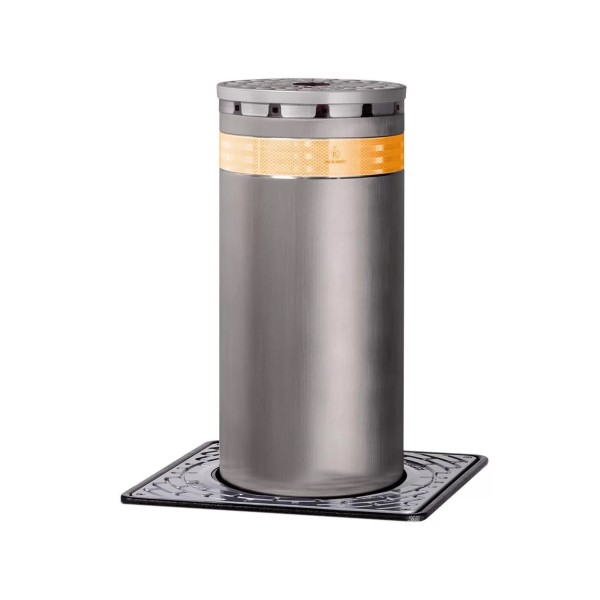

J275 F Fixed H600 Commercial Traffic Control Security Bollard (Stainless Steel) - FAAC 116040

This bollard features a satin stainless steel finish. Use it to complete installations together with other retractable models for access roads.
Part Number: 116040
$1,756.08 each
$1,756.08 each
OR

Details

J275 F Fixed H600 Commercial Traffic Control Security Bollard (Stainless Steel) - FAAC 116040

The J275 F is a fixed access control bollard. Designed and manufactured by FAAC, this bollard is built for the control of traffic in residential or industrial areas, or on access roads. Only minimal excavation is required to install this permanent fixture. This bollard is designed for use with other automatic or semi-automatic bollards in areas where multiple automatic installations are not necessary. The J275 model is made from sturdy AISI 316L grade stainless steel and treated with a satin finish.

Features:

  • Cylinder in stainless steel thickness 0.12 in (3 mm) satin-finished
  • Flashing lights ring with central LED*
  • Power supply and wiring not required
  • Simple installation and limited digging operations
  • Aesthetically consistent with other retractable bollards in mixed installation
  • Possibility to remove the bollard to temporarily open the pedestrian area to traffic

*The power supply (24 Vdc) and the cable (2 x AWG 16) for the flashing lamp are sold separately.

Technical Specs:

  • Cylinder Height: 23.6 in (600 mm)
  • Cylinder Diameter: 10.8 in (275 mm)
  • Cylinder Material, Standard Version: Fe 360 steel 0.16 (4mm) thickness
  • Standard Cylinder Surface Treatment: Cataphoresis and polyester powder painted RAL 7021 metallic dark grey
  • Cylinder Material, Stainless Steel Version: AISI 316 satin finished 0.12 in (3mm) thickness
  • Cylinder Head: Aluminium RAL 9006
  • Standard Reflecting Strip: Height 2.2 in (55 mm)
  • Crash Resistance: 35 KJoules/Painted steel - 59 KJoules/stainless steel
  • Foundation Size: 18 x 18 x 1.2 in (450x450x30 mm)

Optional Accessories:

Manual

CSI Specifications

Specifications



Installation Gallery

J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
J275 Bollard Installation
SKU 116040
Manufacturer FAAC International Inc.
Model J275
Bollard Type Fixed
Height 23.6 in (600 mm)
Color Stainless Steel
