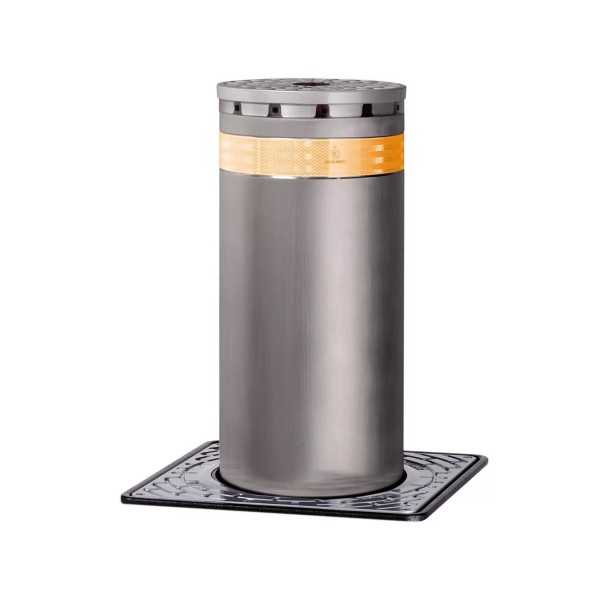

J275 F Fixed H800 Commercial Traffic Control Security Bollard (Painted Steel) - FAAC 116021
Details
J275 F Fixed H800 Commercial Traffic Control Security Bollard (Painted Steel) - FAAC 116021
The J275 F is a fixed access control bollard. Designed and manufactured by FAAC, this bollard is built for the control of traffic in residential or industrial areas, or on access roads. Only minimal excavation is required to install this permanent fixture. This bollard is designed for use with other automatic or semi-automatic bollards in areas where multiple automatic installations are not necessary. The J275 model is made from sturdy S235JR EN 10219 grade steel and treated with a cataphoresis coating and dark gray metallised RAL 7021 polyester powder paint.
Features:
- Cylinder in stainless steel, thickness 0.16 in (4 mm) cataphoresis treatment and painted
- Powder paint dark grey metallised RAL 7021
- Flashing lights ring with central LED*
- Power supply and wiring not required
- Simple installation and limited digging operations
- Aesthetically consistent with other retractable bollards in mixed installation
- Possibility to remove the bollard to temporarily open the pedestrian area to traffic
*The power supply (24 Vdc) and the cable (2 x AWG 16) for the flashing lamp are sold separately.
Specifications:
- Cylinder Height: 31.5 in (800 mm)
- Cylinder Diameter: 10.8 in (275 mm)
- Cylinder Material, Standard Version: Fe 360 steel 0.16 (4mm) thickness
- Standard Cylinder Surface Treatment: Cataphoresis and polyester powder painted RAL 7021 metallic dark grey
- Cylinder Material, Stainless Steel Version: AISI 316 satin finished 0.12 in (3mm) thickness
- Cylinder Head: Aluminium RAL 9006
- Standard Reflecting Strip: Height 2.2 in (55 mm)
- Crash Resistance: 35 KJoules/Painted steel - 59 KJoules/stainless steel
- Foundation Size: 18 x 18 x 1.2 in (450x450x30 mm)
Optional Accessories:
Installation Manual
CSI Specifications
Specifications
Installation Gallery
| SKU | 116021 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Model | J275 |
| Bollard Type | Fixed |
| Height | 31.5 in (800 mm) |
| Color | Painted Steel |
