Fast Gate Openers


412 SX Swing Gate Operator Kit for Left Hinged Gates (10x12 Enclosure) - FAAC 412SX1.5

Availability: In stock

$920.64
OR

Quick Overview

This single swing gate opener is for left-hinged gates up to 14 feet long and 500 pounds. Designed and manufactured by FAAC, the leading name in gate openers. This product is a direct replacement for the FAAC 412SX1-R+.

412 SX Swing Gate Operator Kit for Left Hinged Gates (10x12 Enclosure) - FAAC 412SX1.5

More Views

  • 412 Gate Operator
  • Enclosure
  • Control Board
  • Photobeam Photocells Pair

Details

Looking for a reliable left-hinged swing gate opener for your home? The 412 electromechanical gate operator features anti-crushing safety and is easy to install. It also features a built-in manual release that allows you to open your gate in the event of a power outage. This gate opener was created for light residential, single-family applications.

This single swing gate opener is for left-hinged gates up to 14 feet long and 500 pounds. Designed and manufactured by FAAC, the leading name in gate openers.

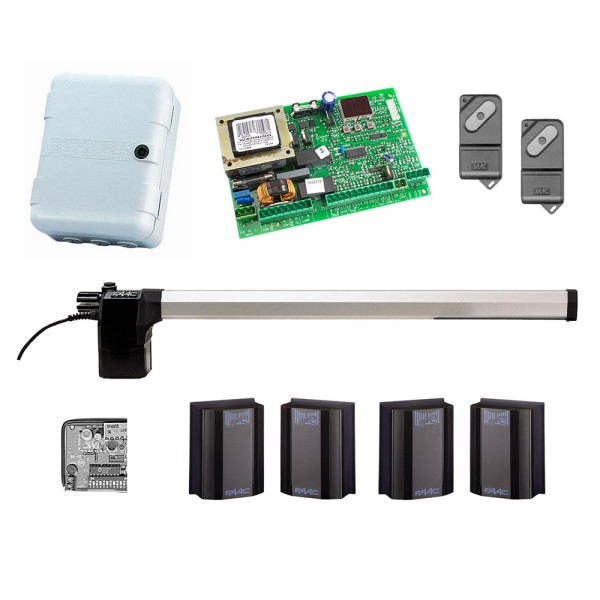

Kit Includes:

  • (1) 412 SX Gate Operator for left hinged gate
  • (1) 455D Control Panel
  • (1) 10" x 12" Enclosure
  • (1) Plug-In Receiver - 418MHz
  • (2) Transmitters - Single Button, 418MHz
  • (2) Photobeam Photocell Pairs

Features:

  • Designed for light residential, single family use
  • Mechanical lock in the open and close position
  • Built in manual release in case of power failure
  • Simple installation and maintenance
  • Anti-crushing safety thanks to the electronic control board

Technical Specs:

  • Input Voltage: 115 VAC
  • Power: 280 W
  • Current: 3 A
  • Thrust Capacitor: 25 uF
  • Motor Rotation Speed: 1400 r.p.m.
  • Rod Extension Speed: 0.6 in/s (1.5 cm/s)
  • Rod Stroke: 11.4 in (290 mm)
  • Leaf Maximum Length: 14 feet (4.2 m)
  • Leaf Maximum Weight: 500 lbs (226.8 kg)
  • Use Frequency (Cycles per Hour): 18
  • Traction and Thrust Force: 719 lbf (320 daN)
  • Thermal Protection on Motor Winding: 284 °F (140 °C)
  • Operating Ambient Temperature: 4°F ÷ 131°F (-20 °C to +55 °C)
  • Protection Class: IP 44
  • Dimensions (L x D x H): 39.3 x 3.5 x 7.7 in (1000x90x195mm)

How do I know if my gate needs a right or left gate operator? You can determine this by looking at your gate from the inside of the property.

This product is a direct replacement for the FAAC 412SX1-R+.

Manual

Brochure

Additional Information

SKU 412SX1.5
Old SKU FAAC 412SX1-R+
Manufacturer FAAC International Inc.
Operator Type Swing
Model Single Kit
Max Leaf Length 14 ft
Max Leaf Weight 500 lbs
Compatible With Left-Hinged Gates
Voltage 115 VAC
Mounting Above Ground
Operator Series 412 SX
