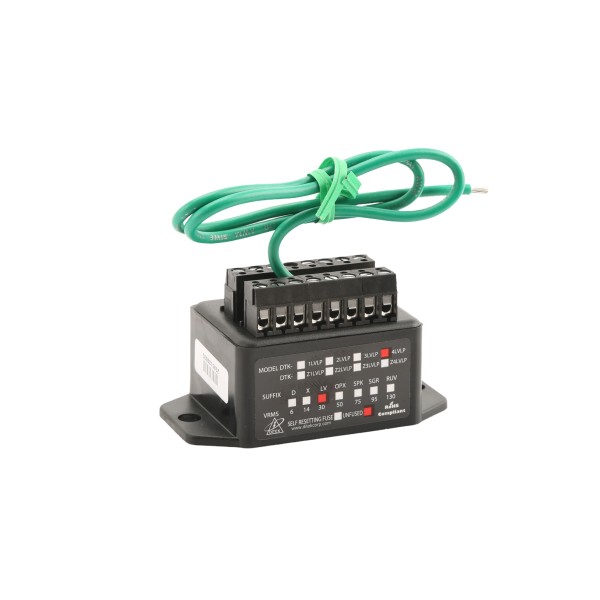

Surge Protector for Up To 4 Low Voltage Circuits (5V, 12V, or 24V) - Q2357 (Previously: 2357)

The FAAC 2357 Surge Protector for low-voltage circuits is a compact, screw-terminal surge protection device that safeguards up to four circuits, including power, LED, data, and audible lines, across 5 V, 12 V, or 24 V systems. Engineered with self-restoring functionality, it automatically returns to service following typical transient events, ensuring continuous protection with minimal maintenance. The unit provides line-to-ground surge protection and connects easily using #22–#16 AWG screw terminals. Its compact design fits most low-voltage control enclosures or access panels.

Features:

• Surge protection device for up to 4 low-voltage circuits
• Protects power, LED, and data lines
• Protection modes: Line-Ground (all)
• Connection method: #22-#16 AWG screw terminals
• Self restoring
• Dimensions: 1.6 x 3.0 x 1.6 in (41 x 76 x 41 mm)
