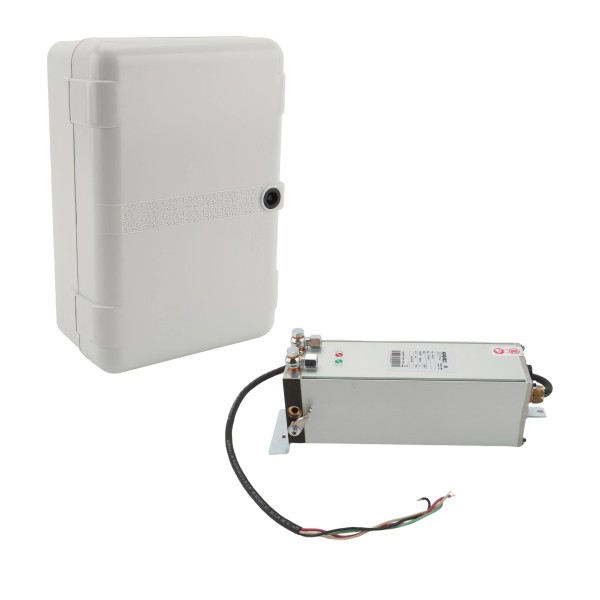

750 CBAC In-Ground Hydraulic Pump Motor Assembly with Enclosure (115V) - FAAC 107725.5
Details
750 CBAC In-Ground Hydraulic Pump Motor Assembly with Enclosure (115V) - FAAC 107725.5
The 750 hydraulic swing gate operator by FAAC features quiet operation and self lubrication. Installed below ground, this operator is almost invisible and is safer than many other swing gate openers. Great for residential uses, such as condos and single-family homes.
Operates swing gates up to 13 ft long and 1700 lbs per leaf. Includes pump motor assembly and enclosure.
Features:
- Invisible, quiet operator with separate drive unit and pump motor
- The ideal solution for artistic gates
- Wide and versatile range from residential to commercial
- Hydraulic lock of the gate in open and closed positions
- Quiet operation
- Self lubricating for long life
Technical Specs:
- Input Voltage: 115 VAC (+10% -6%)
- Power: 220 W
- Current: 2A (120V) - 1 A (230V)
- Motor Rotation Speed: 1400 r.p.m.
- Pump Flow Rate: 0.75 l/min
- Operating Ambient Temperature: 4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Protection Class: IP 55
- Thermal Protection on Motor Winding: 248 Degrees F (120 Degrees C)
- Use Frequency (cycles per hour): 45
- Dimensions: 9.6 x 13.9 x 5.5 in (245x353x141mm)
To create a 115V system for a single leaf gate, you need the following parts:
- (1) 750 CBAC Pump Motor Assembly with Enclosure (part number 107725.5)
- (1) 100 Degree Drive Unit for 750 (part number 108757)
- (1) 455D Control Board with 14 x 16 Enclosure (part number 455D115F.5)
- (1) Foundation Plate (part number 737607)
- (1) Flexible Hydraulic Hose (part number 390422)
- (1) Flex Hose Connector Kit (part number 390421.5)
To create a 115V system for a dual leaf gate, you need the following parts:
- (2) 750 CBAC Pump Motor Assemblies with Enclosures (part number 107725.5)
- (2) 100 Degree Drive Units for 750 (part number 108757)
- (1) 455D Control Board with 14 x 16 Enclosure (part number 455D115F.5)
- (2) Foundation Plates (part number 737607)
- (2) Flexible Hydraulic Hoses (part number 390422)
- (2) Flex Hose Connector Kits (part number 390421.5)
FAAC 750 Manual
FAAC 750 Brochure
| SKU | 107725.5 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Operator Type | Swing |
| Max Gate Weight | 1,700 lbs. |
| Operator Kit Type | Operator Only |
| Flow Rate | 0.75 Lt./Min. |
| Mounting | In-Ground Arm |
| Operator Series | 750 CBAC |
