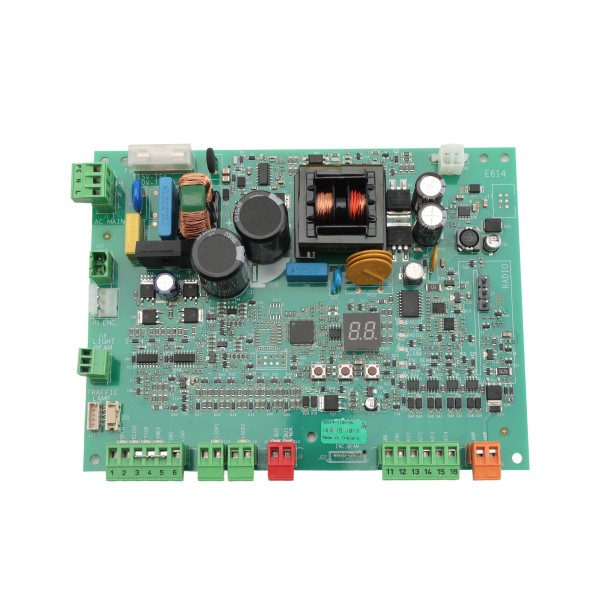

E614 Electronic Control Unit For B614 Barrier Opener System

The E614 Electronic Control Unit is specifically engineered for the B614 Barrier Operator System. It comes equipped with power supply switching, display programming, BUS 2easy technology and OMNIDEC.
Part Number: 63001068
$359.10 each
$359.10 each
OR

Details

E614 Electronic Control Unit For B614 Barrier Opener System

The E614 Electronic Control Unit is specifically engineered for the B614 Barrier Operator System. It comes equipped with power supply switching, display programming, BUS 2easy technology and OMNIDEC. It's compatible with the XF433/XF868 insert module and features an easy-to-use LED display and buttons. With programmable pause time, opening and closing power, work time and cycle counter for service, setting the unit up to meet the exact needs of your next application is no sweat.

Features:

  • Display Programming
  • BUS 2easy Technology
  • Power Supply Switching
  • Easy-To-Use LED Display And Buttons
  • Compatible With XF433/XF868 Insert Module
  • Specifically Engineered For B614 Barrier Operator System

Specifications:

  • Motor Max. Power 150W
  • Power Supply: 230V, 50(60) Hz
  • Accessories Power Supply: 24V
  • Operating Logic: EP-A-AP-B-BC-C-P
  • Operating Temperature Range: -4 Degree F To 131 Degree F
Prefer to Call? (888) 378-1037

Questions about part number 63001068?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 63001068
Manufacturer FAAC International Inc.
Input Voltage 24 DC, 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
Product Type Control Board
Compatible With B614 Barrier Opener
