FAAC JS48 Hydraulic-Automatic Emergency Fast Operation Crash-Rated Bollard (1000mm) - Painted Steel

Details

FAAC JS48 Hydraulic-Automatic Emergency Fast Operation Crash-Rated Bollard (1000mm) - Painted Steel

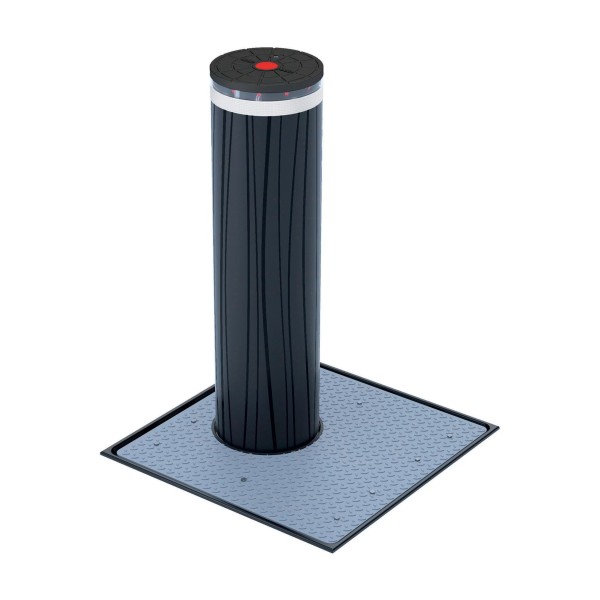

The FAAC JS48 Hydraulic-Automatic Emergency Fast Operation (EFO) Bollard is designed for high-security areas requiring rapid deployment to prevent unauthorized vehicle access. Ideal for military bases, airports, and critical infrastructure, this bollard features a 1000mm high, 275mm diameter high-strength steel cylinder with a painted finish. The integrated hydraulic power unit enables the bollard to rise in less than 1.5 seconds during emergencies, ensuring swift response to security threats. Certified to PAS 68, IWA 14-1, and ASTM F2656 standards, the JS48 EFO bollard provides reliable protection against vehicular attacks.

Please note: you must purchase both the bollard and the required parts for proper & functional installation. You may then also choose optional accessories.

Key Features:

• Emergency Fast Operation (EFO) allows rapid deployment in under 1.5 seconds
• Hydraulic automatic operation suitable for intensive use
• Integrated hydraulic power unit simplifies installation and reduces maintenance
• Interchangeable mDure protective sleeve facilitates easy reconditioning
• Equipped with a reflective strip, LED flashing light ring, and acoustic buzzer for enhanced safety

Specifications:

• Model: JS48 EFO
• Painted Steel
• Type (Operation): Hydraulic-Automatic with Emergency Fast Operation
• Height: 1000 mm
• Cylinder Diameter: 275 mm
• Rise Time: Approximately 6 seconds (standard), less than 1.5 seconds (EFO)
• Descent Time: Approximately 2 seconds
• Crash Rating: M50 P1 (with 1 bollard installed)
• Input Voltage: 220-240V AC, 50/60Hz
• Reflective Strip Color: White
• Manual Lowering Operation: Yes, via hydraulic manual override with release key
• Manual Lowering Operation: Hydraulic lock in raised position during power outages
• Protection Class: IP67
