FAAC Single 750 CBAC 115V 100 Degree Pump Motor Assembly with Steel Enclosure - 750CPMA-115-100

Details

FAAC Single 750 CBAC 115V 100 Degree Pump Motor Assembly with Steel Enclosure - 750CPMA-115-100

The FAAC Single 750 CBAC 115V 100‑Degree Pump Motor Assembly Kit with Steel Enclosure brings together everything required for reliable gate automation with a moderate swing angle. This in‑ground operator stays concealed beneath the driveway or entrance surface, preserving clean lines while providing consistent hydraulic movement. The 100‑degree drive unit is suited for areas that don’t require a full 180‑degree opening, balancing wide enough access with efficient use of space. Safety is built in through XP30 photocells that cover a generous detection range, while the 455D control board in its metal enclosure manages the sequencing and adjustments for smooth travel. Complete with hoses, connectors, and a foundation plate, this package is well suited for single gates up to 13 feet long and 1,700 pounds per leaf.

Features

• In‑ground design keeps the system hidden from view
• Hydraulic drive provides smooth and consistent motion
• Locking mechanism secures the gate when open or closed
• 100‑degree drive unit allows ample opening angle for most residential settings
• XP30 wide‑range photocells with multiple channels for reduced interference
• Foundation plate included for a stable operator base
• 455D control board supplied with protective metal enclosure

Specifications

• Operator Series: 750 CBAC, in‑ground hydraulic
• Input Voltage (pump/motor): 115 VAC
• Power: 220 W
• Pump Flow Rate: 0.75 liters per minute
• Motor Speed: 1400 rpm
• Operating Ambient Temperature: 4 to 131 degrees Fahrenheit (−20 to +55 Celsius)
• Protection Class: IP55
• Thermal Protection: 248 degrees Fahrenheit (120 Celsius)
• Use Frequency: 45 cycles per hour
• Typical Gate Capacity: up to 13 feet and 1,700 pounds per leaf
• Photocell Range: up to 100 feet
• Control Board Input: 115 VAC (455D in metal enclosure)
• Operator Dimensions (pump/motor enclosure): 9.6 × 13.9 × 5.5 inches (245 × 353 × 141 mm)

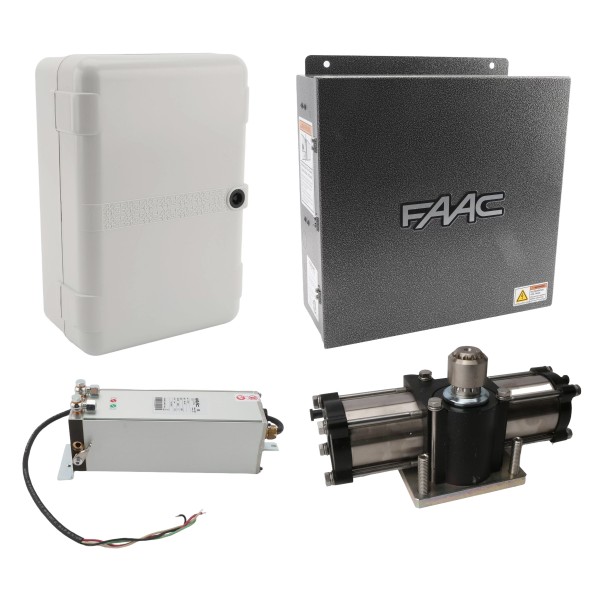

Kit Includes

• XP30 Photocell Conduit Connection Mount Adapter
• XP30 Wide‑Range Photobeam Photocells (Pair)
• Flexible Hydraulic Hose 33 ft. (10 m) for FAAC 750
• Flex Hose Connector Kit for 750 (Bag of 4)
• Foundation Plate for 750 Gate Opener
• FAAC 455D Control Board with Metal Enclosure (115V)
• Model 750 100‑Degree Drive Unit
• 750 CBAC In‑Ground Hydraulic Pump/Motor Assembly with Steel Enclosure (115V)
