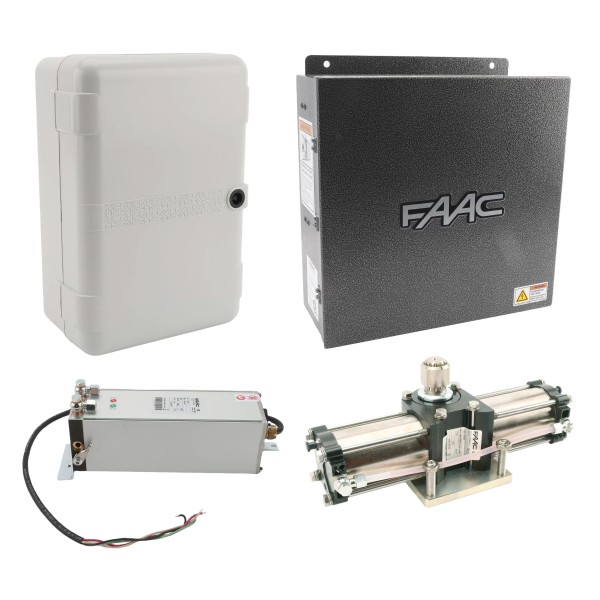

FAAC 750 CBAC 115V 180 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-115-180

Details

FAAC 750 CBAC 115V 180 Degree Pump Motor Assembly Kit with Steel Enclosure - 750CPMA-115-180

The FAAC Single 750 CBAC 115‑Degree Pump Motor Assembly Kit with Steel Enclosure is designed for properties that need a wide 180‑degree swing range supported by dependable hydraulic movement. This in‑ground operator stays hidden beneath the surface, keeping entrances neat while providing smooth gate travel for residential driveways, estates, and light commercial locations. The kit pairs the 115V pump/motor unit with a 180‑degree drive assembly, the 455D control board, XP30 safety photocells, and all essential hoses and mounting accessories to ensure a complete build. With hydraulic locking in both directions, the system maintains controlled positioning whether the gate is open or closed. Combined with its quiet action and integrated safety features, this package offers a balanced solution for single gates up to 13 feet long and 1,700 pounds per leaf.

Features

• In‑ground design keeps the operator hidden from view
• Smooth, quiet hydraulic motion with self‑lubricating components
• Hydraulic lock secures the gate in both open and closed positions
• 180‑degree drive unit accommodates wide swing angles
• XP30 photocells with selectable channels and extended sensing distance
• Foundation plate included to anchor the operator base
• 455D control board provided in a metal enclosure

Specifications

• Operator Series: 750 CBAC, in‑ground hydraulic
• Input Voltage (pump/motor): 115 VAC
• Power: 220 W
• Pump Flow Rate: 0.75 liters per minute
• Motor Speed: 1400 rpm
• Operating Ambient Temperature: 4 to 131 degrees Fahrenheit (−20 to +55 Celsius)
• Protection Class: IP55
• Thermal Protection: 248 degrees Fahrenheit (120 Celsius)
• Use Frequency: 45 cycles per hour
• Typical Gate Capacity: up to 13 feet and 1,700 pounds per leaf
• Photocell Range: up to 100 feet
• Control Board Input: 115 VAC (455D in metal enclosure)
• Operator Dimensions (pump/motor enclosure): 9.6 × 13.9 × 5.5 inches (245 × 353 × 141 mm)

Kit Includes

• XP30 Photocell Conduit Connection Mount Adapter
• XP30 Wide‑Range Photobeam Photocells (Pair)
• Flexible Hydraulic Hose 33 ft. (10 m) for FAAC 750
• Flex Hose Connector Kit for 750 (Bag of 4)
• Foundation Plate for 750 Gate Opener
• FAAC 455D Control Board with Metal Enclosure (115V)
• Model 750 180‑Degree Drive Unit
• 750 CBAC In‑Ground Hydraulic Pump/Motor Assembly with Steel Enclosure (115V)
