J200 F 600 Fixed Bollard for Traffic Control in Painted Steel - FAAC 116506

Availability: In stock

$1,134.00
OR

Quick Overview

Use this bollard to control traffic in residential areas. Designed and manufactured by FAAC.

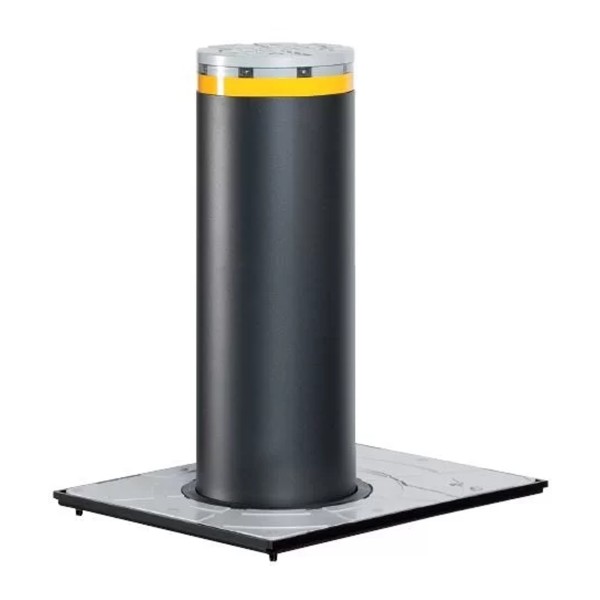

J200 F 600 Fixed Bollard for Traffic Control in Painted Steel - FAAC 116506

Details

The J200 F is a fixed access control bollard. Designed and manufactured by FAAC, this bollard is built for the control of traffic in residential areas. Only minimal excavation is required to install this permanent fixture. This bollard is designed for use with other automatic or semi-automatic bollards in areas where multiple automatic installations are not necessary. The J200 model is made from sturdy S235JRG2 EN 10277 grade steel and treated with a cataphoresis coating and dark gray metallised RAL 7021 polyester powder paint.

The J200 F model is most efficiently used in tandem with the J200 HA series and J200 SA series bollards. The automatic J200 HA bollard is a vital installation wherever accessibility is as important as traffic control. Similarly, the J200 SA is a convenient alternative to the J200 HA as it does not require an electrical connection and is also retractable via key operation.

Features:

  • Steel cylinder, thickness 0.24 in (6 mm) cataphoresis treatment and painted
  • Powder paint dark grey metallised RAL 7021
  • Supporting structure to be cemented, cataphoresis treatment (pit not required)
  • Power supply and wiring not required
  • Simple installation and limited digging operations
  • Aesthetically consistent with other retractable bollards in mixed installations
  • Easy to transport, store and install, thanks to the limited weight of the product

Technical Specs:

  • Cylinder height: 23.6 in (600 mm)
  • Cylinder diameter: 7.9 in (200 mm)
  • Cylinder material, standard version: Fe 360 steel 0.24 in (6mm) thickness
  • Standard cylinder surface treatment: Cataphoresis and polyester powder painted RAL 7021 metallic dark grey
  • Cylinder material, stainless steel version: AISI 316 satin finished 0.24 in (6mm) thickness
  • Cylinder head: Aluminium RAL 9006
  • Standard reflecting strip: Height 1 in (25 mm)

Optional Accessories:

Specifications

CSI Specifications CAD File

Additional Information

SKU 116506
Manufacturer FAAC International Inc.
Model J200
Bollard Type Fixed
Height 23.6 in (600 mm)
Color Painted Steel
