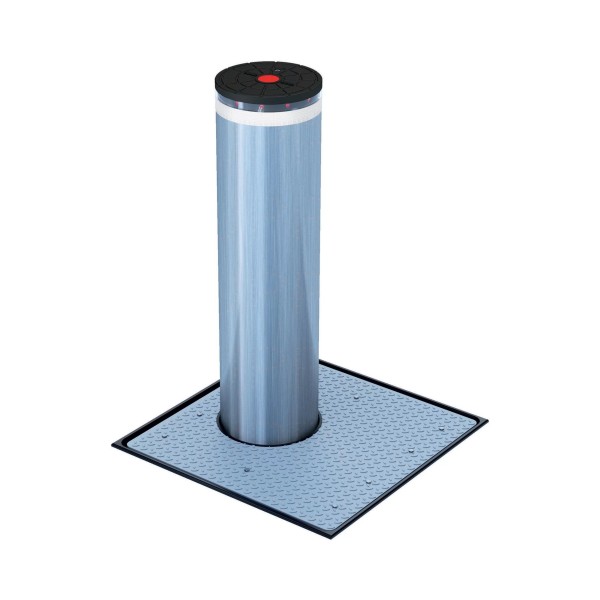

JS48 HA EFO Hydraulic Automatic JS 48 Automatic Retractable High-Security Perimeter Protection Bollard (Stainless Steel) - FAAC 117251

JS48 HA EFO is an automatic hydraulic bollard equipped with an emergency system to raise the bollard in 1.5 seconds. FAAC bollards are an innovative way to protect sensitive buildings, markets, city squares, and pedestrian areas with high traffic. They are a noninvasive way to protect spaces and people but still maintain the aesthetic of the surrounding location. They feature an interchangeable cover, making the bollards always appear new and appealing. It is made from high-grade stainless steel and meets ASTM F 2656-07, IWA 14-1:2013, PAS 68:2013 crash ratings.
Part Number: 117251
$22,724.28 each
$22,724.28 each
OR

Details

JS48 HA EFO Hydraulic Automatic JS 48 Automatic Retractable High-Security Perimeter Protection Bollard (Stainless Steel) - FAAC 117251

The JS48 HA EFO is an automatic hydraulic retractable bollard equipped with an emergency system that allows the bollard to rise in 1.5 seconds. Designed and manufactured by FAAC, this bollard is built to control traffic in residential and commercial areas. The integrated hydraulic power unit reduces costs and is installed without laying costly and time-consuming hydraulic lines. The JS models are made from high-strength steel, treated with a cataphoresis coating and an interchangeable protective cover. The JS48 cover is the mDure long-lasting, recyclable protective sleeve, which allows the bollard to be reconditioned, avoiding disassembly and reassembly costs.

All main components are accessible from above for maintenance, inspection, and replacement work, all done without having to remove the bollard from the ground. All JS series bollards use Rislan anti-corrosive polyamide resin that guarantees protection from the weather, corrosion, and chemical agents. Also, the JS series bollards are 3.3 ft. in height and 10.8 in. in diameter, which meets FAAC safety measures but makes them aesthetically pleasing and suitable for every architectural context.


Features:

  • High-Grade Steel Cylinder
  • Simple Installation and Limited Digging Operations
  • Cylinder Treated With Cataphoresis
  • mDure Protective Sleeve with FAAC Aesthetic Finish
  • Reflector Strip
  • LED Flashing Light Ring
  • Acoustic Buzzer Movement Signal
  • Hydraulic Lock In Raised Position In Case Of Power Outage
  • Release Key For Manual Emergency Lowering
  • Rislan Anti-corrosive Polyamide Resin
  • Ambient Operating Temperature of 8F to 131F (-15C to 55C)

  • Technical Specifications:

  • Operator Type: Hydraulic
  • Cylinder Height: 39.4 " (1000mm)
  • Cylinder Diameter: 10.8 " (275mm)
  • Rising Time: 6 seconds
  • Descent Time: 2 seconds
  • Emergency Rising Time: Less Than 1.5 seconds
  • Power Supply: 220/230/240 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 230 AC (50 Hz, 1 Phase)
  • Cylinder Head: Aluminum
  • Reflective Strip Color: White
  • Traffic Bollard Weight: 1234.6 lbs. (560kg)
  • Break in Resistance: 673J
  • Type of Use: Perimeter Security

  • Accessories:

    Procurement Specification

    CSI Specifications

    Specification Sheet

    Prefer to Call? (888) 378-1037

    Questions about part number 117251?

    Required Fields *

    Name *

    Email *

    Phone

    My Questions *

    SKU 117251
    Manufacturer FAAC International Inc.
    Model JS 48
    Bollard Type Automatic
    Rise Time 1.5 sec
    Input Voltage 220/230/240 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 230 AC (50 Hz, 1 Phase)
    Crash Rated ASTM F 2656-07, IWA 14-1:2013, PAS 68:2013
    Protection Class IP 67
    Height 39.4 in (1000 mm)
    Color Stainless Steel
