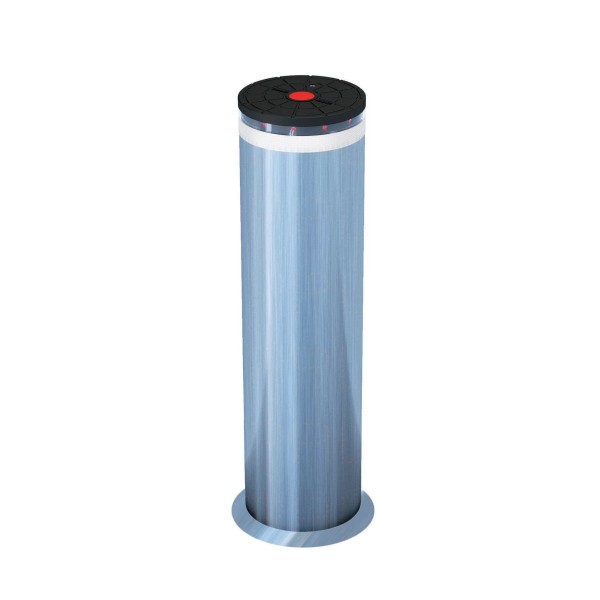

JS48 R Removable JS 48 Non-Retractable Removable High-Security Perimeter Protection Bollard (Stainless Steel) - FAAC 117301
Details
JS48 R Removable JS 48 Non-Retractable Removable High-Security Perimeter Protection Bollard (Stainless Steel) - FAAC 117301
The JS48 R is a non-retractable bollard that can be temporarily removed to permit short-term access to a secured area. Designed and manufactured by FAAC, this bollard is built to control traffic in residential and commercial areas. This bollard is "Shallow Mounted, " designed to secure the bollard with a minimum required hole depth. The JS models are made from high-strength steel, treated with a cataphoresis coating and an interchangeable protective cover. The JS48 cover is the mDure® long-lasting, recyclable protective sleeve, which allows the bollard to be reconditioned, avoiding disassembly and reassembly costs.
All main components are accessible from above for maintenance, inspection, and replacement work, all done without having to remove the bollard from the ground. All JS series bollards use Rislan® anti-corrosive polyamide resin that guarantees protection from the weather, corrosion, and chemical agents. Also, the JS series bollards are 3.3 ft. in height and 10.8 in. in diameter, which meets FAAC safety measures but makes them aesthetically pleasing and suitable for every architectural context.
Features:
- High-Grade Steel Cylinder
- Removable Cylinder To Allow Temporary Access
- Shallow Mounted
- Simple Installation and Limited Digging Operations
- Cylinder Treated With Cataphoresis
- mDure® Protective Sleeve with FAAC Aesthetic Finish
- LED Flashing Light Ring (power source and cables not included)
- Rislan® Anti-corrosive Polyamide Resin
- Ambient Operating Temperature of 8°F to 131°F (-15°C to 55°C)
Technical Specifications:
- Cylinder Height: 39.4 " (1000mm)
- Cylinder Diameter: 10.8 " (275mm)
- Cylinder Head: Aluminum
- Reflective Strip Color: White
- Traffic Bollard Weight: 180kg
- Break in Resistance: 673J
- Type of Use: Perimeter Security
Accessories:
- JE275 Control Unit - 117300
- Underground Bollard Base - 117902
- Bollard Pit Cover - 117903
- Bollard Base Cover - 117904
JS-Series Brochure
Procurement Specification
CSI Specifications
| SKU | 117301 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Model | JS 48 |
| Bollard Type | Fixed |
| Crash Rated | ASTM F 2656-07, IWA 14-1:2013, PAS 68:2013 |
| Protection Class | IP 67 |
| Height | 39.4 in (1000 mm) |
| Color | Stainless Steel |
