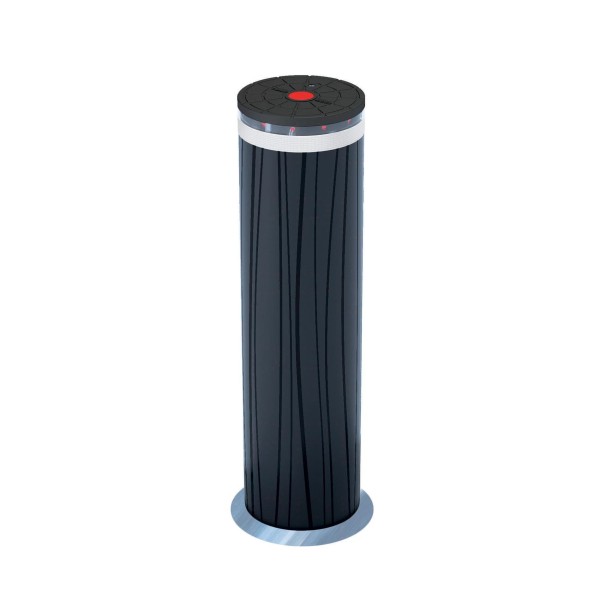

JS80 F Fixed JS 80 Non-Retractable Fixed High-Security Perimeter Protection Bollard (Painted Steel) - FAAC 117651

JS80 F is a non-retractable, fixed bollard. FAAC bollards are an innovative way to protect sensitive buildings, markets, city squares, and pedestrian areas with high traffic. They are a noninvasive way to protect spaces and people but still maintain the aesthetic of the surrounding location. It is made from high-grade stainless steel and meets ASTM F 2656-07, IWA 14-1:2013, PAS 68:2013 crash ratings.
Part Number: 117651

$4,432.32 each
OR

Details

JS80 F Fixed JS 80 Non-Retractable Fixed High-Security Perimeter Protection Bollard (Painted Steel) - FAAC 117651

The JS8F is a non-retractable, fixed bollard. Designed and manufactured by FAAC, this bollard is built to control traffic in residential and commercial areas. This bollard is "Shallow Mounted, " designed to secure the bollard with a minimum required hole depth. The JS models are made from high-strength steel, treated with a cataphoresis coating and an interchangeable protective cover. It is able to withstand an impact from a vehicle driving up to 49 mph (80km/h). The JS80 cover is the mDure long-lasting, recyclable protective sleeve, which allows the bollard to be reconditioned, avoiding disassembly and reassembly costs.

All main components are accessible from above for maintenance, inspection, and replacement work, all done without having to remove the bollard from the ground. All JS series bollards use Rislan anti-corrosive polyamide resin that guarantees protection from the weather, corrosion, and chemical agents. Also, the JS series bollards are 3.3 ft. in height and 10.8 in. in diameter, which meets FAAC safety measures but makes them aesthetically pleasing and suitable for every architectural context.


Features:

  • High-Grade Steel Cylinder
  • Removable Cylinder To Allow Temporary Access
  • Shallow Mounted
  • Simple Installation and Limited Digging Operations
  • Cylinder Treated With Cataphoresis
  • mDure Protective Sleeve with FAAC Aesthetic Finish
  • LED Flashing Light Ring (power source and cables not included)
  • Rislan Anti-corrosive Polyamide Resin
  • Ambient Operating Temperature of 8F to 131F (-15C to 55C)

  • Technical Specifications:

  • Cylinder Height: 39.4 " (1000mm)
  • Cylinder Diameter: 10.8 " (275mm)
  • Cylinder Head: Aluminum
  • Color: Painted Steel
  • Reflective Strip Color: White
  • Traffic Bollard Weight: 303.7 lbs. (150 kg)
  • Break in Resistance: 1.852.000J
  • Type of Use: Perimeter Security

  • Accessories:

    Specification Sheet

    CSI Specification

    Specification Sheet

    Name JS80 F Fixed JS 80 Non-Retractable Fixed High-Security Perimeter Protection Bollard (Painted Steel) - FAAC 117651
    SKU 117651
    Manufacturer FAAC International Inc.
    Model JS 80
    Bollard Type Fixed
    Crash Rated ASTM F 2656-07, IWA 14-1:2013, PAS 68:2013
    Protection Class IP 67
    Height 39.4 in (1000 mm)
    Color Painted Steel
    Price $4,432.32
