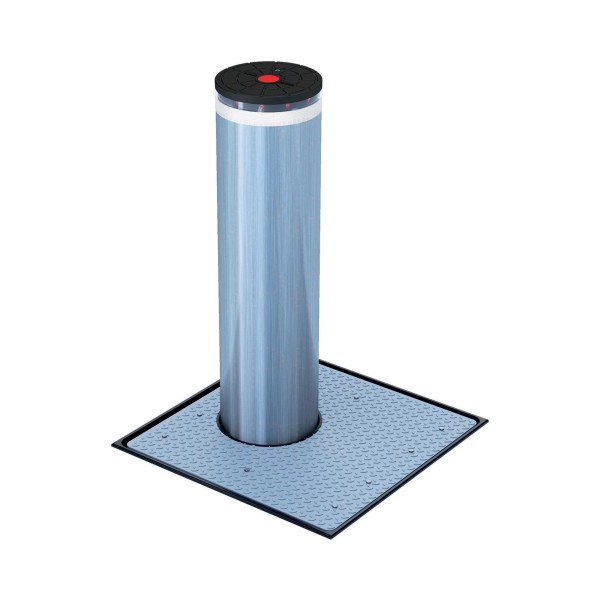

FAAC JS80 Hydraulic-Automatic High-Security Crash-Rated Bollard (1000mm, Stainless Steel)

Engineered for high-impact security applications, this automatic crash-rated bollard offers top-tier vehicle mitigation for sensitive areas such as financial centers, military bases, and transport hubs. The hydraulic system ensures controlled and efficient operation, integrating with security networks for automated response. The stainless steel construction enhances durability, providing excellent corrosion resistance in all weather conditions.
Part Number: 117701
$30,582.90 each
$30,582.90 each
OR


Details

FAAC JS80 Hydraulic-Automatic High-Security Crash-Rated Bollard (1000mm, Stainless Steel)

The FAAC JS80 Hydraulic-Automatic Bollard offers high-security protection with the added durability of stainless steel construction. Ideal for government buildings, critical infrastructure, and restricted-access areas, this bollard provides a reliable hydraulic-automatic system for controlled entry and exit. The 1000mm high, 275mm diameter stainless steel cylinder offers superior corrosion resistance while maintaining high-impact performance. Certified to PAS 68, IWA 14-1, and ASTM F2656 standards, it effectively stops a 7,500 kg truck at 80 km/h.

Key Features:

  • Hydraulic-automatic system for smooth and secure access control
  • Corrosion-resistant stainless steel construction
  • Certified to PAS 68, IWA 14-1, and ASTM F2656 standards
  • Optional LED flashing light and reflective strip for enhanced safetyHigh-performance hydraulic system for reliable long-term operation

Specifications:

  • Model: JS80 H
  • Stainless Steel
  • Type (Operation): Hydraulic-Automatic
  • Height: 1000 mm
  • Cylinder Diameter: 275 mm
  • Crash Rating: M50 P1 (with 1 bollard installed)
  • Reflective Strip Color: White
  • Protection Class: IP67
Procurement Specification Specification Sheet
Prefer to Call? (888) 378-1037

Questions about part number 117701?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 117701
Manufacturer FAAC International Inc.
Model JS 80
Bollard Type Automatic
Rise Time 6 sec
Crash Rating M50 P1
Input Voltage 220/230/240 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 230 AC (50 Hz, 1 Phase)
Crash Testing ASTM F 2656-07, IWA 14-1:2013, PAS 68:2013
Protection Class IP 67
Height 39.4 in (1000 mm)
Color Steel Silver
