JS80 HA Hydraulic Automatic JS 80 Automatic Retractable High-Security Perimeter Protection Bollard (Painted Steel) - FAAC 117501

JS80 HA Hydraulic Automatic JS 80 Automatic Retractable High-Security Perimeter Protection Bollard (Painted Steel) - FAAC 117501

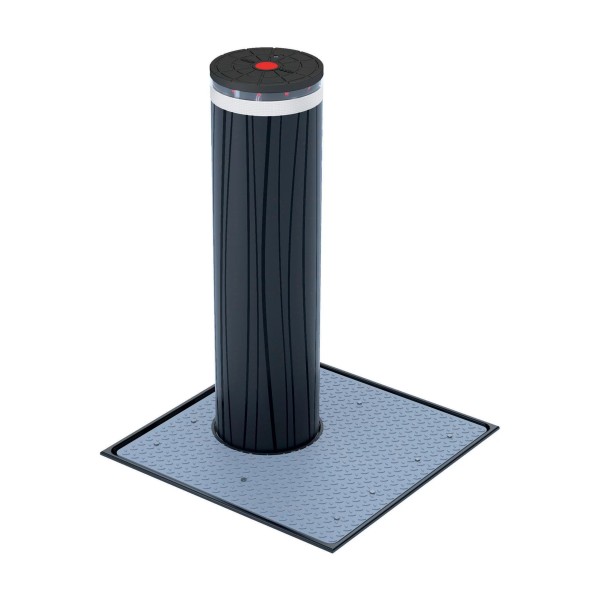

JS80 HA is an automatic hydraulic bollard. FAAC bollards are an innovative way to protect sensitive buildings, markets, city squares, and pedestrian areas with high traffic. They are a noninvasive way to protect spaces and people but still maintain the aesthetic of the surrounding location. They feature an interchangeable cover, making the bollards always appear new and appealing. It is made from high-grade stainless steel and meets ASTM F 2656-07, IWA 14-1:2013, PAS 68:2013 crash ratings.

Part Number: 117501

$27,876.96 each
$27,876.96 each

Details

JS80 HA Hydraulic Automatic JS 80 Automatic Retractable High-Security Perimeter Protection Bollard (Painted Steel) - FAAC 117501

The JS80 HA is an automatic hydraulic retractable bollard. Designed and manufactured by FAAC, this bollard is built to control traffic in residential and commercial areas. The integrated hydraulic power unit reduces costs and is installed without laying costly and time-consuming hydraulic lines. The JS models are made from high-strength steel, treated with a cataphoresis coating and an interchangeable protective cover. It is able to withstand an impact from a vehicle driving up to 49 mph (80km/h).The JS80 cover is the mDure® long-lasting, recyclable protective sleeve, which allows the bollard to be reconditioned, avoiding disassembly and reassembly costs.

All main components are accessible from above for maintenance, inspection, and replacement work, all done without having to remove the bollard from the ground. All JS series bollards use Rislan® anti-corrosive polyamide resin that guarantees protection from the weather, corrosion, and chemical agents. Also, the JS series bollards are 3.3 ft. in height and 10.8 in. in diameter, which meets FAAC safety measures but makes them aesthetically pleasing and suitable for every architectural context.

Features:

High-Grade Steel Cylinder

Painted Steel

Withstand Vehicle Impact Up To 49 mph (80kmp/h)

Simple Installation and Limited Digging Operations

Cylinder Treated With Cataphoresis

mDure® Protective Sleeve with FAAC Aesthetic Finish

Reflector Strip

LED Flashing Light Ring

Acoustic Buzzer Movement Signal

Hydraulic Lock In Raised Position In Case Of Power Outage

Release Key For Manual Emergency Lowering

Rislan® Anti-corrosive Polyamide Resin

Ambient Operating Temperature of 8°F to 131°F (-15°C to 55°C)

Technical Specifications:

Operator Type: Hydraulic

Cylinder Height: 39.4 " (1000mm)

Cylinder Diameter: 10.8 " (275mm)

Color: Painted Steel

Power Supply: 207-243V/ 50/60Hz

Cylinder Head: Aluminum

Reflective Strip Color: White

Traffic Bollard Weight: 1477.1 lbs. (670kg)

Break in Resistance: 1.852.000J

Type of Use: Perimeter Security

Accessories:

JS-Series Brochure

Procurement Specification

Additional Information

SKU	117501
Manufacturer	FAAC International Inc.
Model	JS 80
Bollard Type	Automatic
Rise Time	6 sec
Crash Rated	ASTM F 2656-07, IWA 14-1:2013, PAS 68:2013
Protection Class	IP 67
Height	39.4 in (1000 mm)
Color	Painted Steel
