Fast Gate Openers

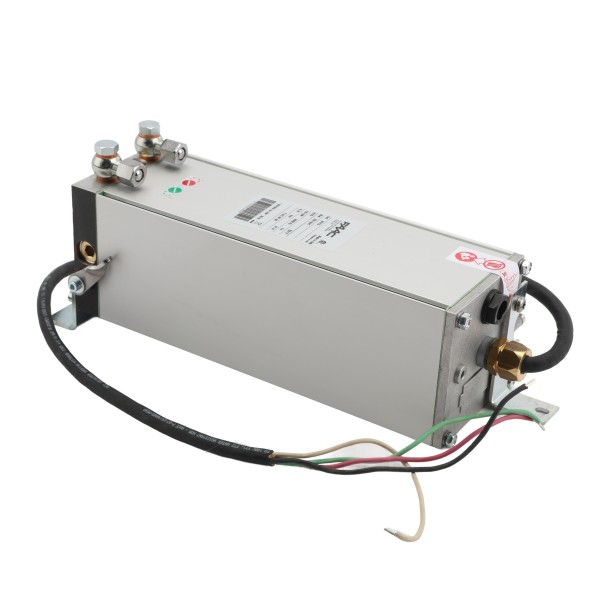

750 CBAC In-Ground Hydraulic Pump Motor Assembly Only (115V) - FAAC 107725

Availability: In stock

$610.40
OR

Quick Overview

The 750 hydraulic swing gate operator by FAAC features quiet operation and self lubrication. Great for residential uses, such as condos and single-family homes. Operates swing gates up to 13 ft long and 1700 lbs per leaf.

750 CBAC In-Ground Hydraulic Pump Motor Assembly Only (115V) - FAAC 107725

Details

The 750 hydraulic swing gate operator by FAAC features quiet operation and self lubrication. Installed below ground, this operator is almost invisible and is safer than many other swing gate openers. Great for residential uses, such as condos and single-family homes.

Operates swing gates up to 13 ft long and 1700 lbs per leaf. Includes pump motor assembly only.

Features:

  • Invisible, quiet operator with separate drive unit and pump motor
  • The ideal solution for artistic gates
  • Wide and versatile range from residential to commercial
  • Hydraulic lock of the gate in open and closed positions
  • Quiet operation
  • Self lubricating for long life

Technical Specs:

  • Input Voltage: 115 VAC (+10% -6%)
  • Power: 220 W
  • Current: 2A (120V) - 1 A (230V)
  • Motor Rotation Speed: 1400 r.p.m.
  • Pump Flow Rate: 0.75 l/min
  • Operating Ambient Temperature: 4°F ÷ 131°F (-20 °C to +55 °C)
  • Protection Class: IP 55
  • Thermal Protection on Motor Winding: 248 °F (120 °C)
  • Use Frequency (cycles per hour): 45
  • Dimensions: 9.6 x 13.9 x 5.5 in (245x353x141mm)

FAAC 750 Manual

FAAC 750 Brochure

Additional Information

SKU 107725
Manufacturer FAAC International Inc.
Operator Type Swing
Model Operator Only
Max Leaf Length 13 ft
Max Leaf Weight 1,700 lbs
Voltage 115 VAC
Mounting In-Ground
Operator Series 750 CBAC
