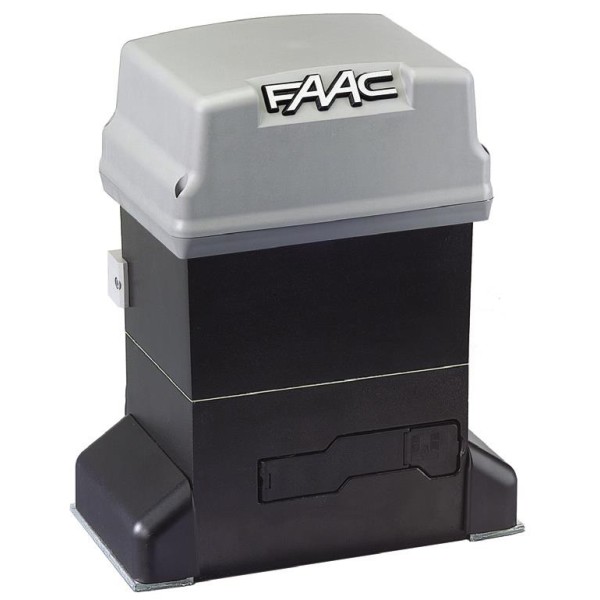

746 ER Z20 Pinion Slide Gate Operator - FAAC 109773

Availability: In stock

$982.24
OR

Quick Overview

The 746 ER slide gate opener from FAAC is easy to install, key protected, and features maximum anti-crushing safety. Designed to handle swing gates up to 900 lbs, this gate operator is perfect for both residential use and installations at condominiums.

746 ER Z20 Pinion Slide Gate Operator - FAAC 109773

Details

The 746 ER slide gate opener from FAAC is easy to install, key protected, and features maximum anti-crushing safety. Designed to handle swing gates up to 900 lbs, this gate operator is perfect for both residential use and installations at condominiums. This operator is created for on-rack applications.

Includes:

  • 746 ER Operator with Z20 Pinion
  • 780D Control Board
  • Limit Switch Magnets
  • Manual Release Key

Features:

  • Quick and easy installation thanks to the built-in, prewired control unit
  • Maximum anti-crushing safety with a twin-disk oil-bath clutch and electronic board with encoder for reverse on obstacle
  • Non-reversing operator, no electric locks needed
  • Key protected manual release device
  • Magnetic limit switch
  • Adjustable mounting bracket for flexible positioning
  • Simplified programming via display and push buttons

Technical Specs:

  • Input Voltage: 230 Vac (+6% -10%)
  • Power: 300 W
  • Current: 1.5 A
  • Electric Motor: 0.3 KW (0.4 hp)
  • Capacitor: 12.5 uF
  • Traction and Thrust Force: 112 lbf (500 N)
  • Motor Rotation Speed: 1700 r.p.m.
  • Reduction Ratio: 1:30
  • Gate Max Weight: 900 lb (408 Kg)
  • Gate Speed: 47 ft/min (14.3 m/min)
  • Gate Max Length: 164 ft (50 m)
  • Use Frequency: 70%
  • Thermal Protection on Motor Winding: 120 °C
  • Clutch: Twin-disk in oil-bath
  • Operating Ambient Temperature: -4°F ÷ 131°F (-20°C ÷ +55°C)
  • Dimensions (L x D x H): 10.8 x 7.5 x 13.2 in (275x191x336 mm)
  • Protection Class: IP 44

FAAC 746 Manual

FAAC 746 Brochure

Additional Information

SKU 109773
Manufacturer FAAC International Inc.
Operator Type Slide
Model Operator Only
Max Leaf Length 164 ft
Max Leaf Weight 900 lbs
Voltage 230 V
Mounting Above Ground
Operator Series 746 ER
