Fast Gate Openers

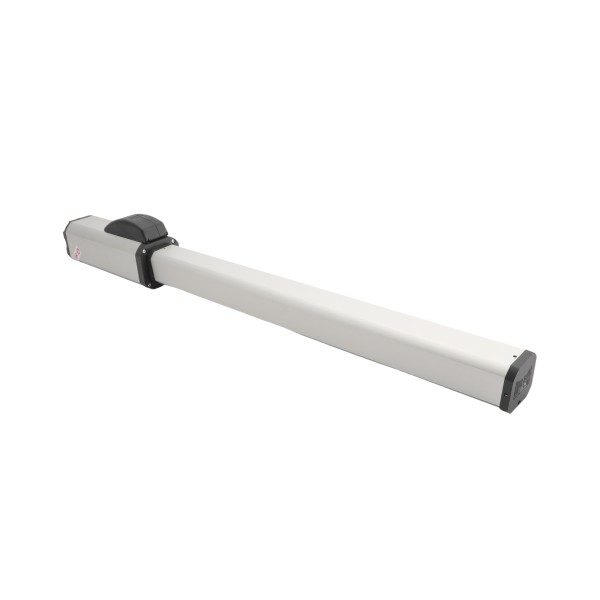

422 CBAC Hydraulic Swing Gate Operator Only with Arctic Oil (115V) - FAAC 1042001277

Availability: In stock

$916.16
OR

Quick Overview

Operates swing gates up to 10 feet long and 900 lbs. Use this operator to turn your single kit into a dual master/slave (bi-parting) kit, or use it as a replacement operator.

422 CBAC Hydraulic Swing Gate Operator Only with Arctic Oil (115V) - FAAC 1042001277

Details

Are you in the market for a durable swing gate opener that can cycle up to 55 times an hour? The 422 CBAC hydraulic swing gate opener from FAAC features quiet operation, manual release, and is self-lubricating to ensure long life. This gate opener kit is perfect for residential homes, including entrances and exits at condominiums.

Operates swing gates up to 10 feet long and 900 lbs. Includes operator only. Use this operator to turn your single kit into a dual master/slave (bi-parting) kit, or use it as a replacement operator.

Features:

  • Versatile hydraulic operator for residential and light commercial application
  • Hydraulic lock of the gate in opened and closed positions
  • Key protected manual release
  • Quiet operation
  • Self lubricating for long life
  • Arctic oil

Technical Specs:

  • Input Voltage: 115 VAC (+10% -6%)
  • Power: 220 W
  • Current: 2 A
  • Motor Rotation Speed: 1400 r.p.m.
  • Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
  • Pump Flow Rate: 1 l/min
  • Traction and Thrust Force: 1124 lbf (500 daN)
  • Leaf Max. Width: 10 ft (3 m)
  • Lead Max. Weight: 900 lb (410 Kg)
  • Usage Frequency (cycles per hour): 55
  • Operating Ambient Temperature: 4°F ÷ 131°F (-20 °C to +55 °C)
  • Thermal Protection on Motor Winding: 248 °F (120 °C)
  • Protection Class: IP 55
  • Dimensions (L x D x H): 38.8 x 4.7 x 3.3 in (987x120x85mm)

FAAC 422 Manual

FAAC 422 Brochure

Additional Information

SKU 1042001277
Manufacturer FAAC International Inc.
Operator Type Swing
Model Operator Only
Max Leaf Length 10 ft
Max Leaf Weight 900 lbs
Voltage 115 VAC
Oil Type Arctic Oil
Mounting Above Ground
Operator Series 422 CBAC
