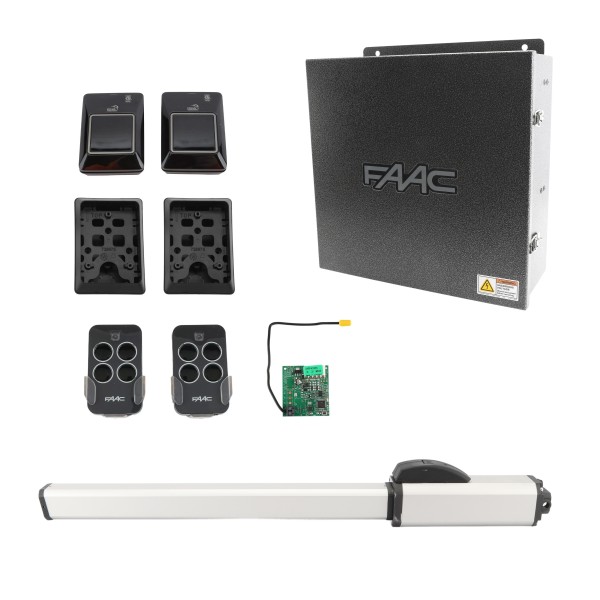

FAAC 422 CBAC Hydraulic Swing Gate Opener Kit with Arctic Oil 115V (10ft/ 900 lbs.) - FAAC 1042001277.5

This gate opener kit is perfect for residential homes, including entrances and exits at condominiums. Operates swing gates up to 10 feet long and 900 lbs.
Part Number: 1042001277.5
$2,017.98 each
$2,017.98 each
OR

Details

FAAC 422 CBAC Hydraulic Swing Gate Opener Kit with Arctic Oil 115V (10ft/ 900 lbs.) - FAAC 1042001277.5

Are you in the market for a durable swing gate opener that can cycle up to 55 times an hour? The 422 CBAC hydraulic swing gate opener from FAAC features quiet operation, manual release, and is self-lubricating to ensure long life.

This gate opener kit is perfect for residential homes, including entrances and exits at condominiums. Operates swing gates up to 10 feet long and 900 lbs.

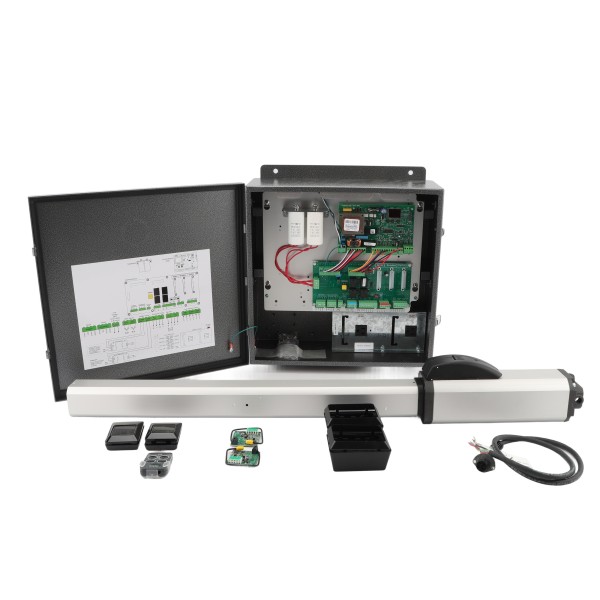

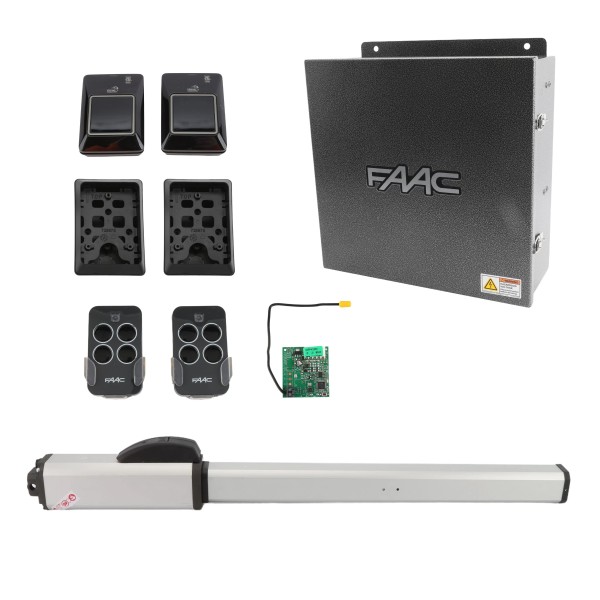

Kit Includes:

  • (1) 422 CBAC Operator
  • (1) 455D Control Board - 115V
  • (1) 14" x 16" Pre-Wired Enclosure
  • (1) Receiver - 433 RC Plug-In
  • (2) 4-Channel Transmitters - XT4 433 RC

Features:

  • Versatile hydraulic operator for residential and light commercial application
  • Hydraulic lock of the gate in opened and closed positions
  • Key protected manual release
  • Quiet operation
  • Self lubricating for long life
  • Arctic oil

Technical Specs:

  • Actuator Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
  • Controller Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
  • Power: 220 W
  • Current: 2 A
  • Motor Rotation Speed: 1400 r.p.m.
  • Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
  • Pump Flow Rate: 1 l/min
  • Traction and Thrust Force: 1124 lbf (500 daN)
  • Leaf Max. Width: 10 ft (3 m)
  • Lead Max. Weight: 900 lb (410 Kg)
  • Usage Frequency (cycles per hour): 55
  • Operating Ambient Temperature: -33 Degrees F to 165 Degrees F (-36 Degrees C to +75 Degrees C)
  • Thermal Protection on Motor Winding: 248 Degrees F (120 Degrees C)
  • Protection Class: IP 55
  • Dimensions (L x D x H): 38.8 x 4.7 x 3.3 in (987x120x85mm)

Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following part:

Manual

Specification Sheet

Prefer to Call? (888) 378-1037

Questions about part number 1042001277.5?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 1042001277.5
Manufacturer FAAC International Inc.
Operator Type Swing
Gate Orientation Left-Hinged Gates, Right-Hinged Gates
Actuator Voltage 110/115/120 AC (60 Hz, 1 Phase)
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Max Gate Length 10 ft.
Max Gate Weight 900 lbs.
Max Opening Angle 90 Degree Opening
Operator Kit Type Single Gate Opener Kit
Oil Type Arctic Oil
Mounting Linear Arm
Operator Series 422 CBAC
