FAAC 422 CBAC Hydraulic Swing Gate Opener Kit with Arctic Oil 230V (10ft / 900 lbs.) - FAAC 104200177.5
Details
FAAC 422 CBAC Hydraulic Swing Gate Opener Kit with Arctic Oil 230V (10ft / 900 lbs.) - FAAC 104200177.5
The FAAC 422 CBAC Hydraulic Swing Gate Opener Kit with Arctic Oil (230V) provides consistent gate automation even in harsh winter weather. Designed for swing gates up to 10 feet long and 900 pounds, it operates at up to 55 cycles per hour, making it ideal for driveways, condominiums, or residential entries. The integrated manual release, quiet operation, and self-lubricating design make this electric gate opener kit a strong option for cold regions. It can also be upgraded into a dual swing gate opener kit by adding a matching operator.
Features:
- Reliable Arctic Oil for cold-weather use down to -33 DegreesF
- Quiet hydraulic actuator for residential applications
- Manual key-release for convenient gate access
- Hydraulic locking in both open and closed positions
- Self-lubricating construction ensures long-term use
Technical Specs:
- Actuator Input Voltage: 220/230/240 AC (60 Hz, 1 Phase)
- Controller Input Voltage: 220/230/240 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 1 A
- Motor Rotation Speed: 1400 r.p.m.
- Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
- Pump Flow Rate: 1 l/min
- Traction and Thrust Force: 1124 lbf (500 daN)
- Leaf Max. Width: 10 ft (3 m)
- Lead Max. Weight: 900 lb (410 Kg)
- Usage Frequency: 55 cycles/hour
- Operating Ambient Temperature: -33 Degrees F to 165 Degrees F (-36 Degrees C to +75 Degrees C)
- Thermal Protection on Motor Winding: 248 Degrees F (120 Degrees C)
- Protection Class: IP 55
- Dimensions (L x D x H): 38.8 x 4.7 x 3.3 in (987x120x85mm)
Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following part:
- 422 CBAC Operator Only (part number 104200177)
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 104200177.5 |
|---|---|
| Manufacturer | FAAC International Inc. |

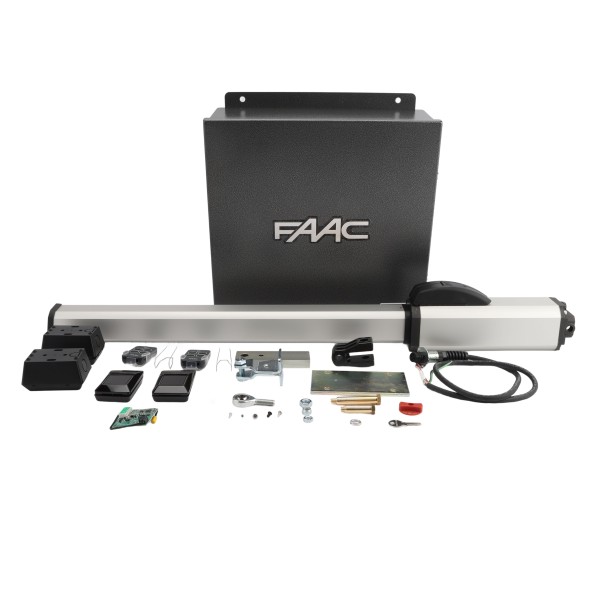

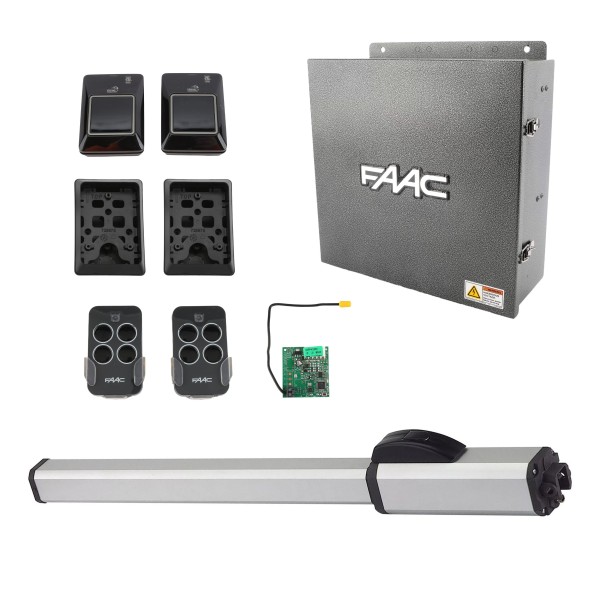

| Kit Includes | Conduit Adapter, Control Board w/ Enclosure, Operator, Photobeam Photocell(s), Receiver, Transmitter |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Color | Gray |
| Max Gate Length | 10 ft. |
| Max Gate Weight | 900 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Oil Type | Arctic Oil |
| Operator Series | 422 CBAC |
