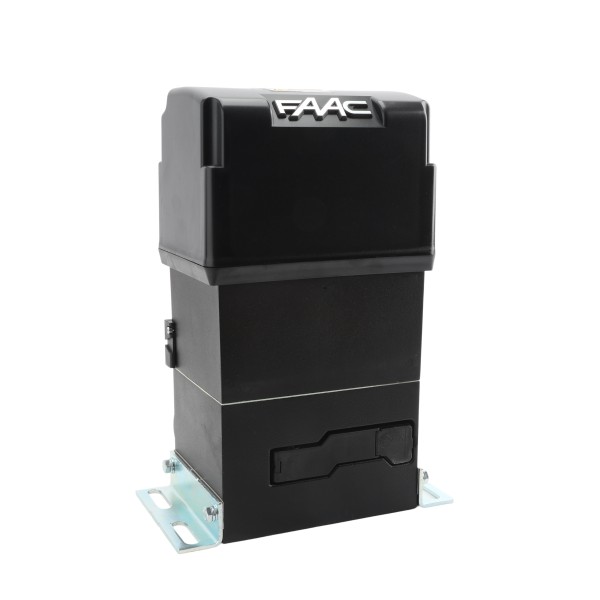

844 ER Z16 Pinion Slide Gate Operator - FAAC 1098371

Availability: In stock

$1,369.20
OR

Quick Overview

If you need a slide gate operator built for tough condominium and industrial use, look no further than the 844 ER. This slide gate opener features maximum anti-crushing safety, key protected manual release, an adjustable mounting bracket for flexible positioning, and is UL listed.

844 ER Z16 Pinion Slide Gate Operator - FAAC 1098371

Details

If you need a slide gate operator built for tough condominium and industrial use, look no further than the 844 ER. This slide gate opener features maximum anti-crushing safety, key protected manual release, an adjustable mounting bracket for flexible positioning, and is UL listed. Created by FAAC, the leading name in the industry.

Operates slide gates up to 131 ft long and 4,000 lbs. Designed for on-rack applications.

Includes:

  • 844 ER Operator with Z16 Pinion
  • 780D Control Board
  • Limit Switch Magnets
  • Manual Release Key

Please Note: Rack sold separately.

Features:

  • Ideal for commercial and industrial applications
  • Maximum anti-crushing safety with a twin-disk oil-bath clutch and electronic board with encoder for reverse on obstacle
  • Non reversing operator, no electric locks needed
  • Key protected manual release device
  • Magnetic limit switch
  • Adjustable mounting bracket for flexible positioning
  • Simplified programming via display and push buttons
  • UL325 / UL 991 listed

Technical Specs:

  • Input Voltage: 115 VAC (+10% -6%)
  • Power: 650 W
  • Current: 7 A
  • Electric Motor: 0.65 KW (0.87 hp)
  • Capacitor: 70 uF
  • Traction and Thrust Force: 247 lbf (1100 N)
  • Motor Rotation Speed: 1700 r.p.m.
  • Reduction Ratio: 1:30
  • Gate Max Weight: 4000 lb (1814 Kg)
  • Gate Speed: 38 ft/min (11.6 m/min)
  • Gate Max Length: 131 ft (40 m)
  • Use Frequency: 70%
  • Thermal Protection on Motor Winding: 120 °C
  • Clutch: Twin-disk in oil-bath
  • Operating Ambient Temperature: -4°F ÷ 131°F (-20°C ÷ +55°C)
  • Dimensions (L x D x H): 10.8 x 7.5 x 15.3 in (275x191x336 mm)
  • Protection Class: IP 44

FAAC 844 ER Manual

FAAC 844 ER Brochure

Additional Information

SKU 1098371
Manufacturer FAAC International Inc.
Operator Type Slide
Model Operator Only
Max Leaf Length 131 ft
Max Leaf Weight 4,000 lbs
Voltage 115 VAC
Mounting Above Ground
Operator Series 844 ER
