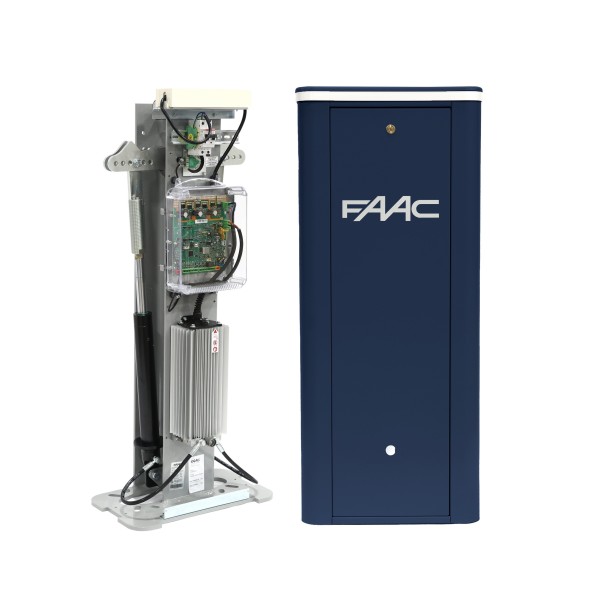

FAAC B680H Automatic Barrier Gate Opener S Kit w/ Blue Cover (Barrier Arm Sold Separately) - FAAC 1046801BL

This high-quality and state-of-the-art automatic barrier kit comes with everything you need to install a well-working barrier arm.
Part Number: 1046801BL
$2,326.86 each
$2,326.86 each
OR


Details

FAAC B680H Automatic Barrier Gate Opener S Kit w/ Blue Cover (Barrier Arm Sold Separately) - FAAC 1046801BL

B680H Automatic Barrier Operator S Kit With Blue Cover (Excludes Barrier Arm) - FAAC 1046801GY

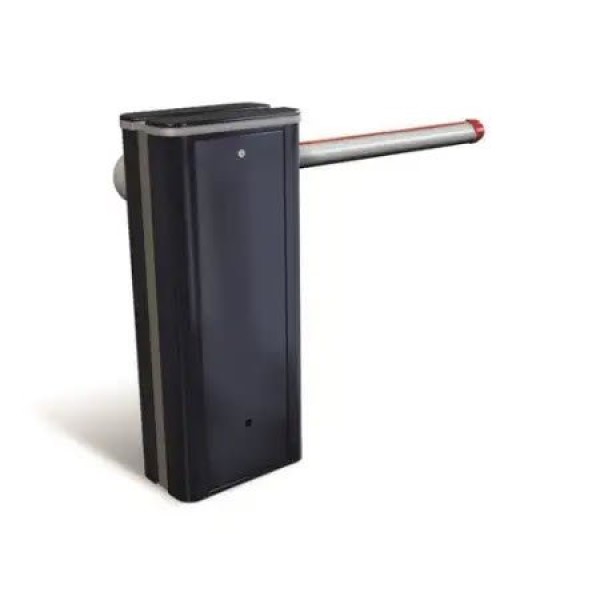

The B680H Automatic 24V Hybrid Barrier Operator by FAAC is a multi-functional barrier operator that is controlled by an easy to program and technologically advanced control unit with an integrated encoder (with reverse in the event of an obstacle), two integrated loop detectors, and Primary/Secondary logic. It is capable of performing up to 2,000,000 cycles by utilizing advanced hybrid technology that features a Hydraulic + Brushless Motor and High Logistic Optimization that allows for a single model to be suitable for all barrier lengths. It also features an adjustable electronic anti-crushing safety system that guarantees stopping and locking of the beam in any position, and a convenient manual release in case of power outage. NOTE: Be Sure To Order Barrier Arm When Ordering The Kit.

Kit Includes:

Available S-Style Barrier Arms:


  • B680H Operator
  • Blue RAL 9006 Cover
  • Balancing Sping
  • S Bracket
  • *Does Not Include Barrier Arm

Features:

  • Barrier Length: 6.5 - 16.4 ft.
  • Opening Time (Programmable): 1.5 - 6 sec.
  • Board Type: E 680 Control Board
  • Removable Housing
  • Simple, Guided Mechanical Setup
  • Automatic, 2-Step Control Board Setup
  • Switching Power Supply
  • Integrated Absolute Encoder
  • "Everlasting" Springs
  • 24V Hybrid Heart
  • Compatible with 620 and 640 foundation plates

Technical Specifications:

  • Barrier Arm Type: Round
  • Input Voltage: 100 - 240V AC 50/60 Hz
  • Maximum Power: 240 W
  • Electric Motor: Brushless 36V DC
  • Absorbed Current: 1.1 A (@ 230V DC)
  • Motor Rotation Speed: 1000 - 6000 rpm
  • Motor-Pump Unit Capacity: 3.2 lpm
  • Frequency Of Use: Continuous
  • Electronic Declaration: Absolute Magnetic Encoder
  • Oil Type: FAAC HP OIL
  • Protection Rating: IP44
  • Operating Temperature: -4 Degrees F To 131 Degrees F

Manual

Specification Sheet

Name FAAC B680H Automatic Barrier Gate Opener S Kit w/ Blue Cover (Barrier Arm Sold Separately) - FAAC 1046801BL
SKU 1046801BL
Price $2,326.86
