FAAC B680H Automatic Barrier Gate Opener L Kit With White Cover (Barrier Arm Sold Separately - FAAC 1046801WHL

The B680H Automatic 24V Hybrid Barrier Operator by FAAC is a multi-functional barrier operator that is controlled by an easy to program and technologically advanced control unit with an integrated encoder (with reverse in the event of an obstacle), two integrated loop detectors, and Primary/Secondary logic.
Part Number: 1046801WHL

$2,937.60 each
OR

Details

FAAC B680H Automatic Barrier Gate Opener L Kit With White Cover (Barrier Arm Sold Separately - FAAC 1046801WHL

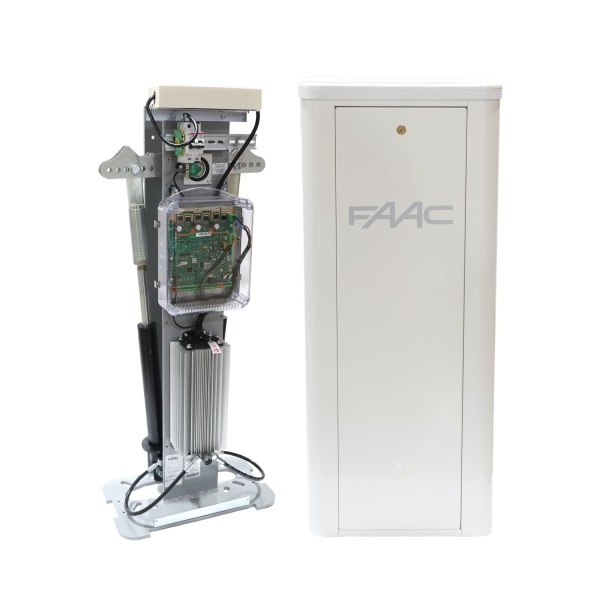

B680H Automatic Barrier Operator L Kit With White Cover (Excludes Barrier Arm) - FAAC 1046801WHL

The B680H Automatic 24V Hybrid Barrier Operator by FAAC is a multi-functional barrier operator that is controlled by an easy to program and technologically advanced control unit with an integrated encoder (with reverse in the event of an obstacle), two integrated loop detectors, and Primary/Secondary logic. It is capable of performing up to 2,000,000 cycles by utilizing advanced hybrid technology that features a Hydraulic + Brushless Motor and High Logistic Optimization that allows for a single model to be suitable for all barrier lengths. It also features an adjustable electronic anti-crushing safety system that guarantees stopping and locking of the beam in any position, and a convenient manual release in case of power outage.

The L-Style Barrier Operator Kits by FAAC are specifically designed to be used with longer barrier arms. Because of this added length, the barrier arms come in three separate parts: the L Beam First Section, followed by the L Beam Coupling and then the L Beam End Section. There are three different sized end sections that you can order, depending on the needs of your application. Additionally, each end section is able to be cut down to the desired custom length. We also offer L-Style Barrier Arm Kits which include all three components needed for barrier arm installation.

NOTE: Be Sure To Order Barrier Arm When Ordering This Operator.

Kit Includes:

Available L-Style Barrier Arm Kits:


  • B680H Operator
  • White RAL 9010 Cover
  • Balancing Sping
  • L Bracket
  • *Does Not Include Barrier Arm

Features:

  • Barrier Length: 6.5 - 26.5 ft.
  • Opening Time (Programmable): 1.5 - 6 sec.
  • Board Type: E 680 Control Board
  • Removable Housing
  • Simple, Guided Mechanical Setup
  • Automatic, 2-Step Control Board Setup
  • Switching Power Supply
  • Integrated Absolute Encoder
  • "Everlasting" Springs
  • 24V Hybrid Heart
  • Compatible with 620 and 640 foundation plates

Technical Specifications:

  • Barrier Arm Type: Round
  • Input Voltage: 100 - 240V AC 50/60 Hz
  • Maximum Power: 240 W
  • Electric Motor: Brushless 36V DC
  • Absorbed Current: 1.1 A (@ 230V DC)
  • Motor Rotation Speed: 1000 - 6000 rpm
  • Motor-Pump Unit Capacity: 3.2 lpm
  • Frequency Of Use: Continuous
  • Electronic Declaration: Absolute Magnetic Encoder
  • Oil Type: FAAC HP OIL
  • Protection Rating: IP44
  • Operating Temperature: -4 Degrees F To 131 Degrees F

Manual

Specification Sheet

Name FAAC B680H Automatic Barrier Gate Opener L Kit With White Cover (Barrier Arm Sold Separately - FAAC 1046801WHL
SKU 1046801WHL
Operator Type Barrier
Input Voltage 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
Color White
Mounting Above Ground
Max Gate Length 26.5 ft.
Operator Kit Type Primary
Manufacturer FAAC International Inc.
Operator Series B680H
Price $2,937.60
