FAAC JS48 Hydraulic-Automatic Crash-Rated Bollard (1000mm) - Painted Steel

Details

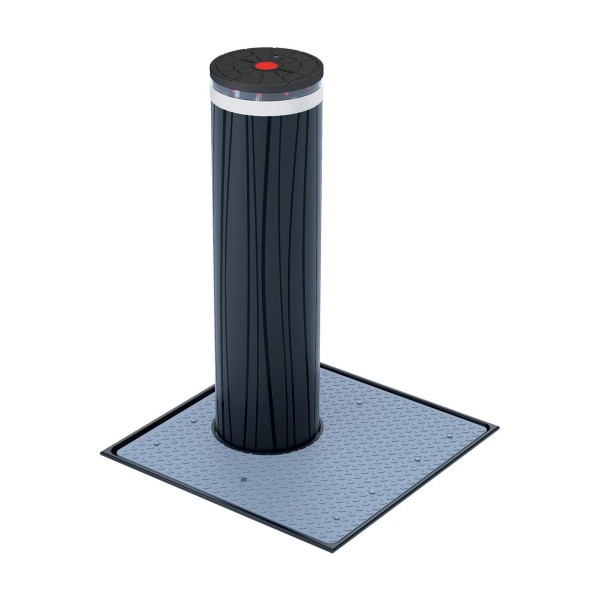

FAAC JS48 Hydraulic-Automatic Crash-Rated Bollard (1000mm) - Painted Steel

The FAAC JS48 Hydraulic-Automatic Bollard is engineered to provide high-security vehicle access control in sensitive areas such as government buildings, embassies, and pedestrian zones. This retractable bollard features a 1000mm high, 275mm diameter cylinder constructed from high-strength steel with a painted finish, ensuring both durability and aesthetic integration into various environments. The integrated hydraulic power unit facilitates smooth and reliable operation, allowing the bollard to rise in approximately 6 seconds and lower in about 2 seconds. Certified to PAS 68, IWA 14-1, and ASTM F2656 standards, the JS48 is capable of stopping a 7,500 kg truck traveling at 50 km/h, providing robust protection against unauthorized vehicular access.

Please note: you must purchase both the bollard and the required parts for proper & functional installation. You may then also choose optional accessories.

Key Features:

• Hydraulic automatic operation suitable for intensive use
• Integrated hydraulic power unit for simplified installation and maintenance
• Interchangeable mDure protective sleeve for easy reconditioning
• Equipped with a reflective strip, LED flashing light ring, and acoustic buzzer for enhanced visibility and safety

Specifications:

• Model: JS48
• Painted Steel
• Type (Operation): Hydraulic-Automatic
• Height: 1000 mm
• Cylinder Diameter: 275 mm
• Rise Time: Approximately 6 seconds
• Descent Time: Approximately 2 seconds
• Crash Rating: M50 P1 (with 1 bollard installed)
• Input Voltage: 220-240V AC, 50/60Hz
• Reflective Strip Color: White
• Manual Lowering Operation: Yes, via hydraulic manual override with release key
• Manual Lowering Operation: Hydraulic lock in raised position in case of power outage
• Protection Class: IP67
