FAAC JS48 Hydraulic-Automatic Emergency Fast Operation Crash-Rated Bollard (1000mm) - Stainless Steel

Details

FAAC JS48 Hydraulic-Automatic Emergency Fast Operation Crash-Rated Bollard (1000mm) - Stainless Steel

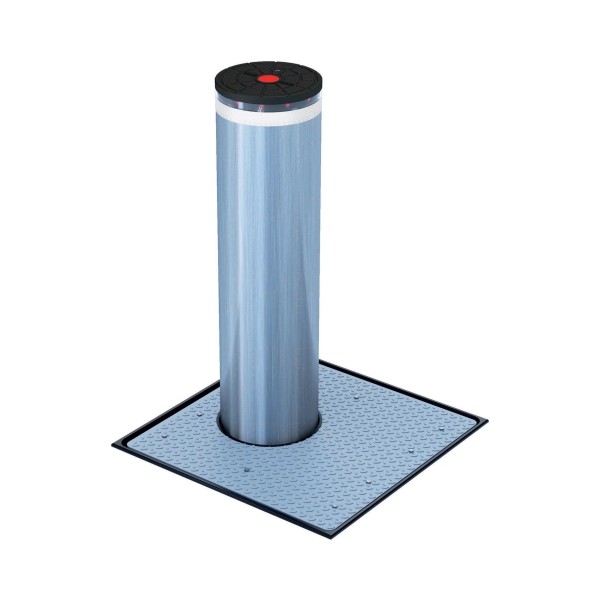

The FAAC JS48 Hydraulic-Automatic Emergency Fast Operation (EFO) Bollard is engineered for high-security environments requiring rapid deployment to prevent unauthorized vehicular access. Ideal for military installations, embassies, and critical infrastructure, this retractable bollard features a 1000mm high, 275mm diameter high-strength steel cylinder with a satin-finished stainless steel protective sleeve. The integrated hydraulic power unit enables standard rise times of approximately 6 seconds, with the EFO system reducing deployment to less than 1.5 seconds during emergencies. Certified to PAS 68, IWA 14-1, and ASTM F2656 standards, the JS48 EFO bollard effectively halts a 7,500 kg truck traveling at 50 km/h, ensuring robust perimeter protection.

Please note: you must purchase both the bollard and the required parts for proper & functional installation. You may then also choose optional accessories.

Key Features:

• Emergency Fast Operation (EFO) system for rapid deployment in under 1.5 seconds
• Hydraulic automatic operation suitable for intensive use
• Integrated hydraulic power unit simplifies installation and maintenance
• Interchangeable mDure protective sleeve with satin-finished stainless steel for enhanced durability
• Equipped with a reflective strip, LED flashing light ring, and acoustic buzzer for enhanced visibility and safety

Specifications:

• Model: JS48 EFO
• Satin-Finished Stainless Steel
• Type (Operation): Hydraulic-Automatic with Emergency Fast Operation
• Height: 1000 mm
• Cylinder Diameter: 275 mm
• Rise Time: Approximately 6 seconds (standard), less than 1.5 seconds (EFO)
• Descent Time: Approximately 2 seconds
• Crash Rating: M50 P1 (with 1 bollard installed)
• Input Voltage: 220-240V AC, 50/60Hz
• Reflective Strip Color: White
• Manual Lowering Operation: Yes, via hydraulic manual override with release key
• Manual Lowering Operation: Hydraulic lock in raised position during power outages
• Protection Class: IP67
