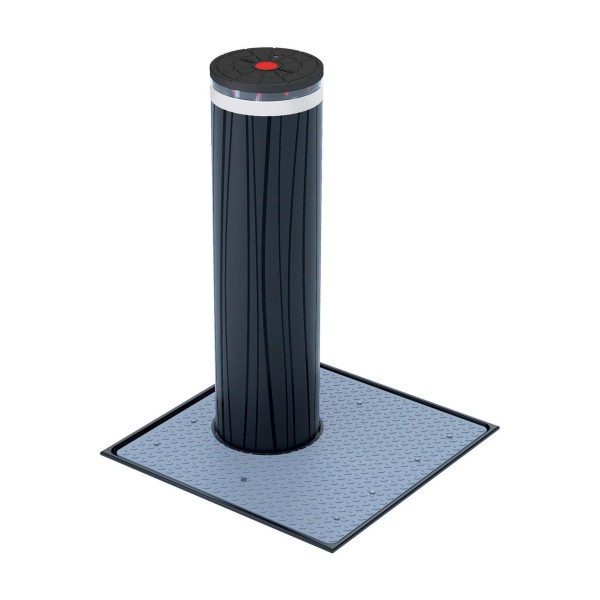

FAAC JS80 Hydraulic-Automatic Crash-Rated Bollard (1000mm) - Painted Steel

Details

FAAC JS80 Hydraulic-Automatic Crash-Rated Bollard (1000mm) - Painted Steel

The FAAC JS80 Hydraulic-Automatic Bollard is a high-security crash-rated solution designed for controlled access areas, government buildings, and sensitive locations requiring reliable vehicle mitigation. Standing at 1000mm high with a 275mm diameter, this bollard is made from high-strength painted steel for durability and impact resistance. The hydraulic system ensures smooth and efficient automatic operation, enhancing security while allowing authorized vehicle access. Certified to PAS 68, IWA 14-1, and ASTM F2656 standards, it effectively stops a 7,500 kg truck traveling at 80 km/h.

Please note: you must purchase both the bollard and the required parts for proper & functional installation. You may then also choose optional accessories.

Key Features:

• Hydraulic-automatic operation for controlled access
• High-strength painted steel construction for impact resistance
• Crash-rated to PAS 68, IWA 14-1, and ASTM F2656 standards
• Reflective strip and optional LED flashing light for visibility
• Reliable and efficient hydraulic mechanism for long-term performance

Specifications:

• Model: JS80 H
• Painted Steel
• Type (Operation): Hydraulic-Automatic
• Height: 1000 mm
• Cylinder Diameter: 275 mm
• Crash Rating: M50 P1 (with 1 bollard installed)
• Reflective Strip Color: White
• Protection Class: IP67
