FAAC 422 CBAC Hydraulic Swing Gate Opener Kit with Regular Oil 230V (10ft / 900 lbs.) - FAAC 1042001.5
Details
FAAC 422 CBAC Hydraulic Swing Gate Opener Kit with Regular Oil 230V (10ft / 900 lbs.) - FAAC 1042001.5
The FAAC 422 CBAC is a compact and efficient electric gate opener kit engineered for swing gates up to 10 feet long and 900 pounds. Operating at 230V, it's designed for high-cycle usage, up to 55 cycles per hour, making it suitable for homes, condominiums, or private access points. This low voltage gate opener package includes quiet operation, key-protected manual release, and self-lubricating components for long-term performance. It can also be converted into a dual swing gate opener kit by adding a matching secondary arm.
Features:
- Hydraulic design tailored for residential and gated entryways
- Operates quietly, making it ideal for neighborhood environments
- Hydraulic locking in open and closed positions
- Manual key release allows access during outages
- Self-lubricating internals reduce wear and service needs
Technical Specs:
- Input Voltage: 220/230/240 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 1 A
- Motor Rotation Speed: 1400 r.p.m.
- Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
- Pump Flow Rate: 1 l/min
- Traction and Thrust Force: 1124 lbf (500 daN)
- Leaf Max. Width: 10 ft (3 m)
- Lead Max. Weight: 900 lb (410 Kg)
- Usage Frequency: 55 cycles/hour
- Operating Ambient Temperature: 4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Thermal Protection on Motor Winding: 248 Degrees F (120 Degrees C)
- Protection Class: IP 55
- Dimensions (L x D x H): 38.8 x 4.7 x 3.3 in (987x120x85mm)
Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following part:
- 422 CBAC Operator Only (part number 1042001)
This product is a direct replacement for the FAAC 1042001.5+.
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 1042001.5 |
|---|---|
| Old SKU | FAAC 1042001.5+ |
| Manufacturer | FAAC International Inc. |

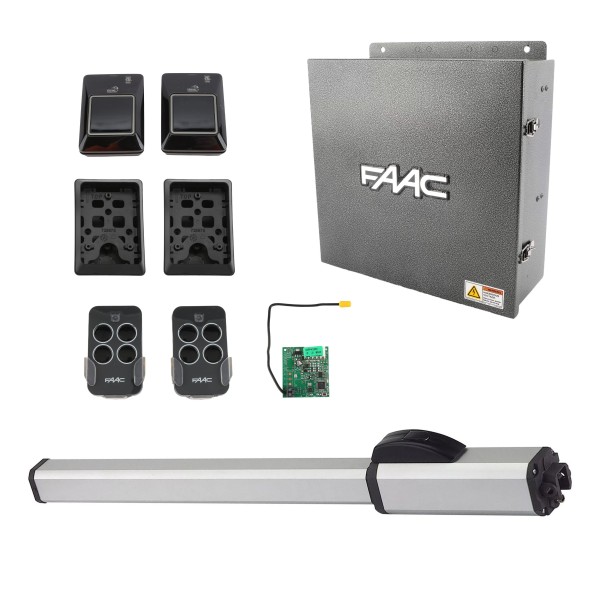

| Kit Includes | Conduit Adapter, Control Board w/ Enclosure, Operator, Photobeam Photocell(s), Receiver, Transmitter |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Color | Stainless Steel |
| Max Gate Length | 10 ft. |
| Max Gate Weight | 900 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Oil Type | Regular Oil |
| Operator Series | 422 CBAC |
