FAAC 770 In-Ground Hidden Single Swing Gate Opener Kit (14ft/ 1100 lbs.) - FAAC 106753.5
Details
FAAC 770 In-Ground Hidden Single Swing Gate Opener Kit (14ft/ 1100 lbs.) - FAAC 106753.5
The FAAC 770 In-Ground Hidden Swing Gate Opener is a premium low voltage gate opener package designed for applications where appearance matters. Ideal for high-end residential and commercial installations, this swing gate opener for residential driveways is completely concealed, preserving your property's aesthetic. The operator is easy to access for maintenance without removing the gate, and offers an optional 180-degree opening upgrade. Built with weather-resistant components and a powerful battery backup system, this automatic swing gate opener kit is engineered for all-season performance and continuous operation on gates up to 14 feet and 1,100 pounds.
Features:
- Fully hidden design maintains unobstructed driveway appearance
- Access operator without removing gate leaf for easy service
- Rugged die-cast construction with IP 67 weather protection
- Compatible with 140 Degrees and 180 Degrees opening kits (optional)
- Battery backup built-in for uninterrupted operation during outages
- Certified to UL325 Safety Standards
Technical Specs:
- Actuator Voltage: 24 DC
- Controller Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 70 W
- Current: 3 A
- Max Torque: 221 lbf ft (300 Nm)
- Reduction Ratio: 1:1418
- Angular Speed: 6 Degrees/sec
- Max Opening Angle: 110 Degrees standard, 140 Degrees and 180 Degrees with optional kits
- Leaf Max Width: 10 ft (3 m)
- Leaf Max Weight: 1100 lb (500 Kg)
- Use Frequency: Continuous
- Operating Temp: -4 DegreesF to 131 DegreesF (-20 DegreesC to +55 DegreesC)
- Operator Dimensions: 14 x 6 x 5.5 in (360x150x140 mm)
- Support Box Dimensions: 17 x 12 x 8 in (430x307x214 mm)
- Protection Class: IP 67
Looking to create a bi-parting system? Add these components:
- 770 Operator Only (part number 10675315)
- Support Box (part number 490065)
- AWG 12 2-conductor Cable (part number 2197)
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 106753.5 |
|---|---|
| Old SKU | FAAC 106753.5E+ |
| Manufacturer | FAAC International Inc. |

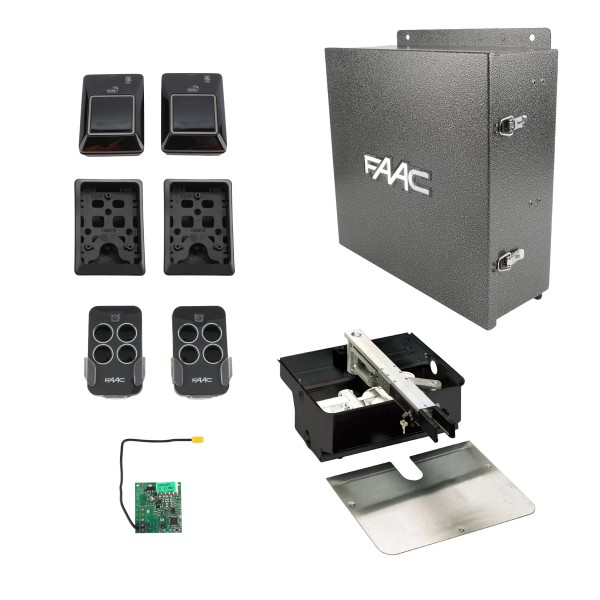

| Kit Includes | Conduit Adapter, Enclosure w/ Batteries, Operator, Photobeam Photocell(s), Receiver, Support Box, Transmitter |
| Oil Type | Regular Oil |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Actuator Voltage | 24 DC |
| Color | Painted Steel |
| Max Gate Length | 10 ft. |
| Max Gate Weight | 1,100 lbs. |
| Max Opening Angle | 110 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Operator Series | 770 |
