FAAC S450H Single CBAC Hydraulic Swing Gate Opener Kit with Regular Oil (14ft / 1100 lbs.) - FAAC 104100.5

This automatic swing gate opener kit is designed for residential driveways, powering gates up to 14 feet and 1100 pounds. It blends hydraulic technology with a 24 V low voltage gate opener package for smooth, quiet motion. A great choice for those seeking a DIY swing gate opener system with battery backup and advanced safety features.

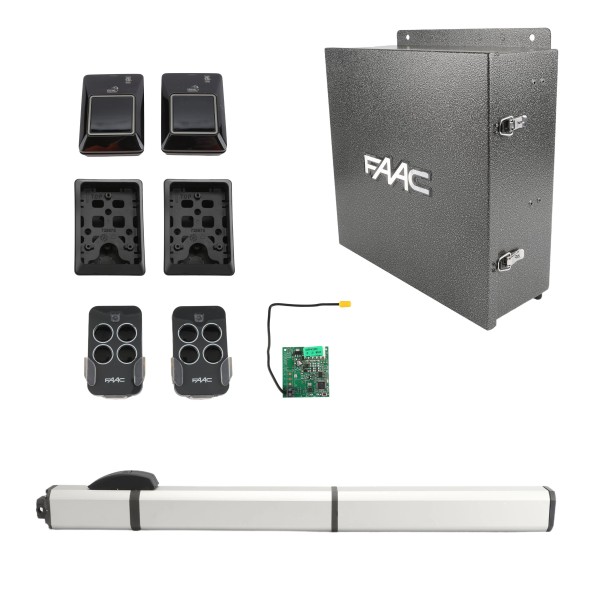

Kit Includes:

  • (1) S450H CBAC Operator
  • (1) E024U Control Board
  • (1) 14" x 16" Enclosure
  • (2) Batteries 12V 8 Ah
  • (1) Power Supply
  • (1) Receiver 433 RC Plug-In
  • (2) 4-Channel Transmitters XT4 433 RC
Part Number: 104100.5
$2,021.76 each
$2,021.76 each
OR

Details

FAAC S450H Single CBAC Hydraulic Swing Gate Opener Kit with Regular Oil (14ft / 1100 lbs.) - FAAC 104100.5

The FAAC S450H Single CBAC is a heavy duty swing gate opener designed for residential driveways and light commercial use. It combines hydraulic strength with 24 V low voltage electronics, offering a quiet, fluid motion for gates weighing up to 1100 pounds and stretching up to 14 feet. This electric gate opener kit includes battery backup functionality and can be upgraded to a dual swing gate opener kit by adding a secondary arm. With hybrid drive engineering and smart control integration, it's a reliable choice for homeowners looking for a DIY swing gate opener system with premium performance.

Features:

  • Hybrid 24 VDC hydraulic technology for fluid gate movement
  • Integrated encoder provides precise operator positioning
  • 12.2-inch stroke designed for standard residential gates
  • Multi-position bracket allows non-welded, adjustable mounting
  • Built-in opening and closing mechanical stops
  • Battery backup swing gate opener functionality included
  • Control board features reverse-on-contact for enhanced safety
  • Rated for UL325 Safety Standards

Technical Specs:

  • Model: CBAC
  • Input Voltage For Actuator: 24 VDC
  • Input Controller: 110/115/120 AC (60HZ, 1 Phase)
  • Power: 60 W
  • Current: 7 A
  • Max Thrust: 1124 lbf (500 daN)
  • Rod Stroke: 12.2 in (311 mm)
  • Max Rod Extension Speed: 1 in/s (2.5 cm/s)
  • Max. Leaf Width: 14 ft (4.3 m)
  • Max. Leaf Weight: 1100 lb (500 Kg)
  • Operating Ambient Temperature: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
  • Use Frequency: Continuous
  • Operator Dimensions: 43.8 x 3.3 x 4.7 in (1113x85x119 mm)
  • Projection Class: IP 55
  • Hydraulic Locks: Installed

Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following parts:

This product is a direct replacement for the FAAC 104100.5+.

Manual

Specification Sheet


Frequently Asked Questions:

What are the benefits of buying a complete swing gate opener kit?

A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.

How do I choose the right swing gate opener kit for my gate?

Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.

Can these gate opener kits be installed without a professional?

Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.

What's the difference between a solar and low voltage swing gate opener?

Solar: Best for remote areas, powered by a panel and battery.

Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.

Prefer to Call? (888) 378-1037

Questions about part number 104100.5?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 104100.5
Old SKU FAAC 104100.5+
Manufacturer FAAC International Inc.
Kit Includes Conduit Adapter, Enclosure w/ Batteries, Operator, Photobeam Photocell(s), Receiver, Transmitter
UL325 Compliant Tooltip
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
Class I, Class II, Class III, Class IV
Operator Type Swing Gate Operator
Actuator Voltage 24 DC
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Max Gate Length 14 ft.
Max Gate Weight 1,100 lbs.
Max Opening Angle 100 Degree Opening
Operator Kit Type Single Gate Opener Kit
Oil Type Regular Oil
Operator Series S450H CBAC
