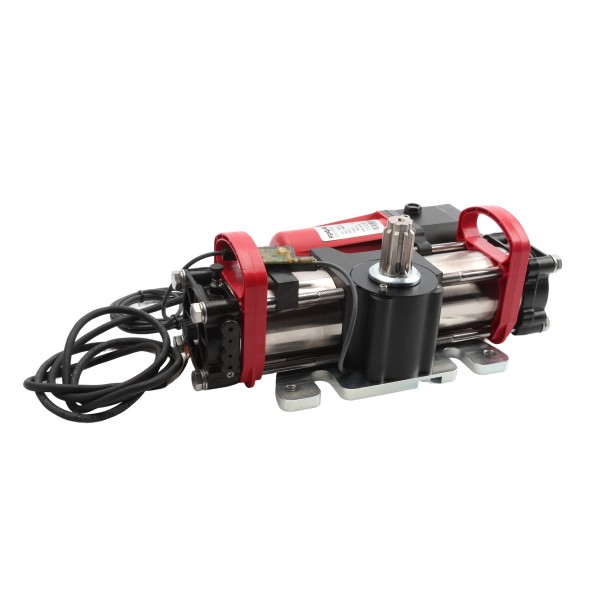

S800H ENC CBAC 100° In-Ground Hydraulic Swing Gate Opener Only - FAAC 108720

Details

S800H ENC CBAC 100° In-Ground Hydraulic Swing Gate Opener Only - FAAC 108720

Use the S800H 100° swing gate operator to turn your single S800H CBAC kit into a master/slave (bi-parting) kit, or use it as a replacement operator. This low voltage gate opener is designed for in-ground installation so as not to detract from the appearance of your gate. Great for condominiums!

This operator is for swing gates up to 13 feet long and 1760 lbs. Includes operator only.

Features:

• Hybrid technology
• Integrated encoder to control operator position
• Improved encoder to track the gate movement and to guarantee the maximum safety and reliability of the system.
• 100° opening angle
• Opening/Closing mechanical stops integrated
• Easy handling and installation thanks to the integrated handles
• Maximum safety thanks to the E024U control board reverse on contact feature
• Built in battery backup to ensure operation in case of power outage
• SBW version for use in areas subject to strong winds
• UL325 Listed

Technical Specs:

• Model: S800H CBAC
• Input Voltage: 24 VDC
• Power: 60 W
• Current: 7 A
• Max Torque: 442 lbf.ft (600 Nm)
• Max Angle Speed: 8.2°/s
• Max Opening Angle: 113° (S800H 100°) - 187° (S800H 180°)
• Max. Leaf Width: 13 ft (4 m)
• Max. Leaf Weight: 1760 lb (800 Kg)
• Operating Ambient Temperature: -4°F ÷ 131°F (-20°C ÷ +55°C)
• Use Frequency: Continuous
• Projection Class: IP 67
• Hydraulic Locks: Installed
