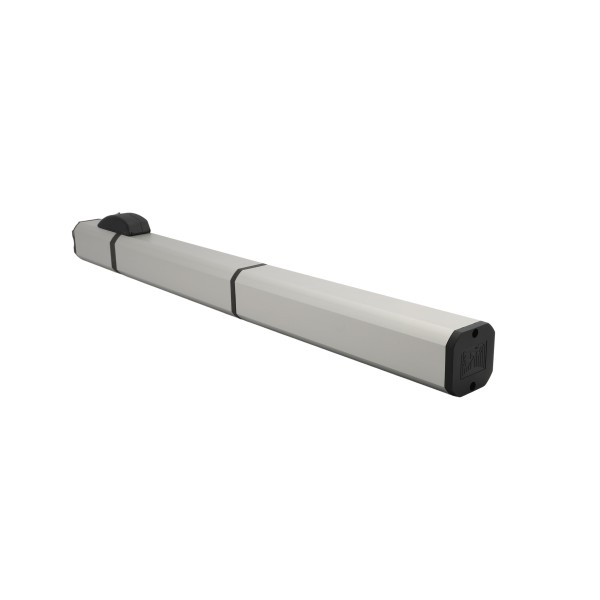

S450H CBAC Hydraulic Swing Gate Opener Only with Arctic Oil - FAAC 1041001577
Details
S450H CBAC Hydraulic Swing Gate Opener Only with Arctic Oil - FAAC 1041001577
The FAAC S450H CBAC hydraulic swing gate opener is the ideal swing gate operator for residential applications. A versatile gate opener, this operator features a sleek design and hybrid technology that allows it to blend 24 V and hydraulic operation.
This gate opener can move gates up to 1100 pounds and 14 feet long. Includes operator only.
Features:
- Hybrid technology
- Integrated encoder to control operator position
- Useful stroke 12.2 in (311 mm)
- New "multi-position" bracket for non-welded applications
- Opening/Closing mechanical stops included
- Maximum safety thanks to the E024U control board reverse on contact feature
- Built in battery backup to ensure operation in the event of a power outage
- UL325 Listed
Technical Specs:
- Model: CBAC
- Input Voltage: 24 VDC
- Power: 60 W
- Current: 7 A
- Max Thrust: 1124 lbf (500 daN)
- Rod Stroke: 12.2 in (311 mm)
- Max Rod Extension Speed: 1 in/s (2.5 cm/s)
- Max. Leaf Width: 14 ft (4.3 m)
- Max. Leaf Weight: 1100 lb (500 Kg)
- Operating Ambient Temperature: -40°F to 131°F (-40°C to +55°C)
- Use Frequency: Continuous
- Operator Dimensions: 43.8 x 3.3 x 4.7 in (1113x85x119 mm)
- Projection Class: IP 55
- Hydraulic Locks: Installed
FAAC S450H Manual
FAAC S450H Brochure
| SKU | 1041001577 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Operator Type | Swing |
| Color | Stainless Steel |
| Max Gate Length | 14 ft. |
| Max Gate Weight | 1,100 lbs. |
| Operator Kit Type | Operator Only |
| Oil Type | Arctic Oil |
| Mounting | Above Ground |
| Operator Series | S450H CBAC |
