S450H CBAC Hydraulic Swing Gate Operator Kit with Arctic Oil - FAAC 1041001577.5

Availability: In stock

$1,681.68
OR

Quick Overview

A versatile gate opener, this operator features a sleek design and hybrid technology that allows it to blend 24 V and hydraulic operation. Perfect for gates up to 1100 pounds and 14 feet long.

S450H CBAC Hydraulic Swing Gate Operator Basic Single Kit with Arctic Oil - FAAC 1041001577.5

More Views

  • S450H CBAC Gate Operator
  • Enclosure
  • Control Board
  • Transmitter (penny shown for scale)

Details

The FAAC S450H CBAC hydraulic swing gate opener is the ideal swing gate operator for residential applications. A versatile gate opener, this operator features a sleek design and hybrid technology that allows it to blend 24 V and hydraulic operation.

This gate opener can move gates up to 1100 pounds and 14 feet long.

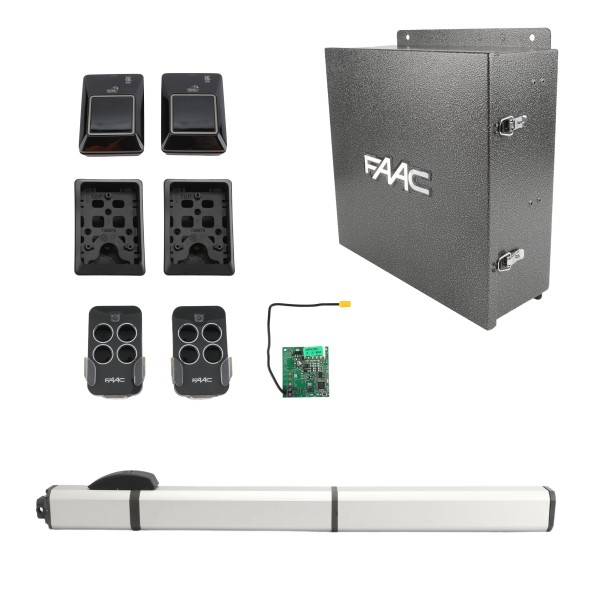

Kit Includes:

  • (1) S450H CBAC Operator
  • (1) E024U Control Board
  • (1) 14" x 16" Enclosure
  • (2) Batteries 12V 8 Ah
  • (1) Power Supply
  • (1) Receiver 433 RC Plug-In
  • (2) 4-Channel Transmitters XT4 433 RC
  • Arctic Oil

Features:

  • Hybrid technology
  • Integrated encoder to control operator position
  • Useful stroke 12.2 in (311 mm)
  • New "multi-position" bracket for non-welded applications
  • Opening/Closing mechanical stops included
  • Maximum safety thanks to the E024U control board reverse on contact feature
  • Built in battery backup to ensure operation in the event of a power outage
  • UL325 Listed

Technical Specs:

  • Model: CBAC
  • Input Voltage: 24 VDC
  • Power: 60 W
  • Current: 7 A
  • Max Thrust: 1124 lbf (500 daN)
  • Rod Stroke: 12.2 in (311 mm)
  • Max Rod Extension Speed: 1 in/s (2.5 cm/s)
  • Max. Leaf Width: 14 ft (4.3 m)
  • Max. Leaf Weight: 1100 lb (500 Kg)
  • Operating Ambient Temperature: -4°F ÷ 131°F (-20°C ÷ +55°C)
  • Use Frequency: Continuous
  • Operator Dimensions: 43.8 x 3.3 x 4.7 in (1113x85x119 mm)
  • Projection Class: IP 55
  • Hydraulic Locks: Installed

Interested in turning this single gate operator into a dual gate system? To make a master/slave (bi-parting) kit, add the following parts:

FAAC S450H Manual

FAAC S450H Brochure

Additional Information

SKU 1041001577.5
Manufacturer FAAC International Inc.
Operator Type Swing
Model Single Kit
Max Leaf Length 14 ft
Max Leaf Weight 1,100 lbs
Voltage 24 VDC
Oil Type Arctic Oil
Mounting Above Ground
Operator Series S450H CBAC
