FAAC S800H Dual SBW 100 Degree In-Ground Hydraulic Swing Gate Opener Kit (16ft / 1760 lbs.) - FAAC 10871415.5
Details
FAAC S800H Dual SBW 100 Degree In-Ground Hydraulic Swing Gate Opener Kit (16ft / 1760 lbs.) - FAAC 10871415.5
The FAAC S800H Single SBW 100 Degree Hydraulic Swing Gate Opener Kit is a rugged, in-ground gate opener designed for areas exposed to high winds. Built with SBW (Strong Wind Barrier) enhancements and paired with a durable support box, this low voltage gate opener offers smooth operation, 100 degrees of swing, and reliable performance. Its underground design eliminates visual clutter while enhancing security and aesthetics. Whether you're installing a swing gate opener for a residential driveway or a commercial access point, this operator offers the performance and resilience you need in a low voltage gate opener package.
Features:
- Wind-resistant SBW version ideal for strong wind areas
- Hybrid hydraulic-electric technology
- 100 Degree swing angle with built-in mechanical stops
- Integrated encoder for precise position control
- Battery backup ensures continued operation during outages
- Reverse-on-contact safety via E024U control board
- Underground mounting preserves visual aesthetics
- Rated for UL325 Safety Standards
Specifications:
- Model: S800H SBW
- Actuator Voltage: 24 DC
- Controller Voltage: 110/115/120 AC, 60 Hz, Single Phase
- Power: 60 W
- Current: 7 A
- Max Torque: 442 lbf ft (600 Nm)
- Max Opening Angle: 113 Degrees
- Leaf Width: 16 ft (4.9 m)
- Leaf Weight: 1,760 lb (800 kg)
- Operating Temp: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Duty Cycle: Continuous
- Ingress Protection: IP 67
- Hydraulic Locks: Not Installed
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 10871415.5 |
|---|---|
| Manufacturer | FAAC International Inc. |

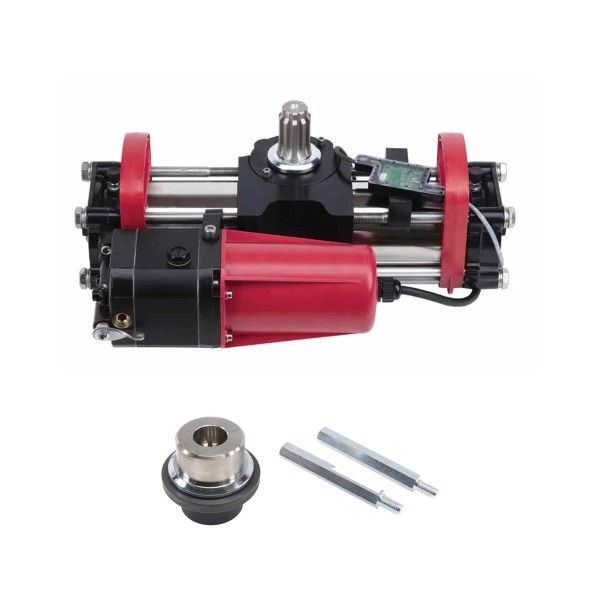

| Kit Includes | Operator, Splined Shaft Collar w/ Mounting Bolts |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Actuator Voltage | 24 DC |
| Color | Black |
| Max Gate Length | 16 ft. |
| Max Gate Weight | 1,760 lbs. |
| Max Opening Angle | 100 Degree Opening |
| In-Ground Housing | Housing Sold Separately |
| Operator Kit Type | Dual Gate Opener Kit |
| Operator Series | S800H SBW |
