FAAC S800H Single SBW 100 Degree In Support Box In-Ground Hydraulic Swing Gate Opener Kit (16ft / 1760 lbs.) - FAAC 108714.5
Details
FAAC S800H Single SBW 100 Degree In Support Box In-Ground Hydraulic Swing Gate Opener Kit (16ft / 1760 lbs.) - FAAC 108714.5
The FAAC S800H Dual SBW 100 Degree Hydraulic Swing Gate Opener Kit is purpose-built for installations exposed to strong winds and demanding conditions. As a low voltage, in-ground gate opener kit, it preserves your entrance's clean aesthetic while delivering full functionality. With dual actuators and hybrid hydraulic technology, it handles two swing gates up to 16 feet and 1,760 pounds each. Built for longevity and continuous use, this automatic farm gate opener or commercial swing gate operator meets UL325 safety standards and offers smooth, silent, and safe operation.
Features:
- SBW version for wind-exposed environments
- Hybrid technology with encoder-controlled positioning
- 100 Degree swing range per leaf
- Integrated mechanical stops for opening and closing
- Battery backup included for power loss continuity
- E024U control board with reverse-on-contact feature
- Durable in-ground installation with discreet appearance
- Rated for UL325 Safety Standards
Specifications:
- Model: S800H SBW
- Actuator Voltage: 24 DC
- Control Board Voltage: 110/115/120 AC, 60 Hz, Single Phase
- Power: 60 W
- Current: 7 A
- Max Torque: 442 lbf ft (600 Nm)
- Max Angle Speed: 8.2 degrees per second
- Max Opening Angle: 113 Degrees (100 Degree Version)
- Leaf Length (Each Gate): 16 ft (4.9 m)
- Leaf Weight (Each Gate): 1,760 lb (800 kg)
- Ambient Temp: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Duty Cycle: Continuous
- Protection Rating: IP 67
- Hydraulic Locks: Not Installed
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 108714.5 |
|---|---|
| Manufacturer | FAAC International Inc. |

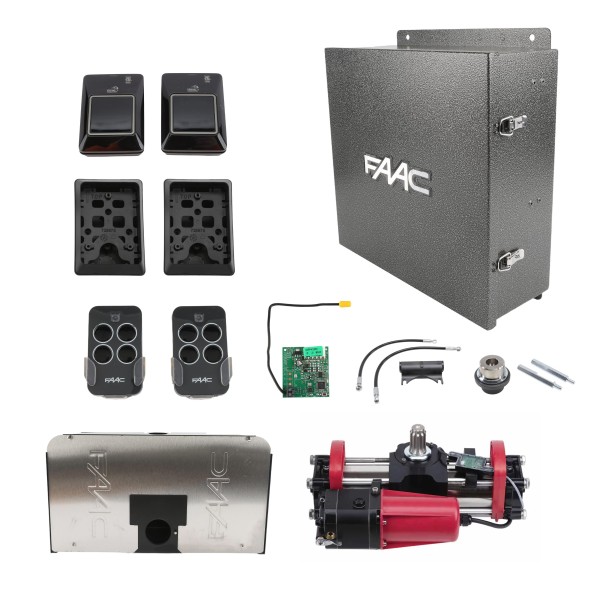

| Kit Includes | Conduit Adapter, Enclosure w/ Batteries, Hydraulic Manual Release, Operator, Photobeam(s), Receiver, Splined Shaft Collar w/ Mounting Bolts, Support Box, Transmitter |
| Oil Type | Regular Oil |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Actuator Voltage | 24 DC |
| Max Gate Length | 16 ft. |
| Max Gate Weight | 1,760 lbs. |
| Max Opening Angle | 90 Degree Opening |
| In-Ground Housing | Standard Steel Housing |
| Operator Kit Type | Single Gate Opener Kit |
| Operator Series | S800H SBW |
