FAAC S800H Dual SBW 180 Degree In-Ground Hydraulic Swing Gate Opener Kit (16ft / 1760 lbs.) - FAAC 10871515.5
Details
FAAC S800H Dual SBW 180 Degree In-Ground Hydraulic Swing Gate Opener Kit (16ft / 1760 lbs.) - FAAC 10871515.5
The FAAC S800H SBW 180 Degree Dual Kit is engineered to power a bi-parting dual swing gate setup. It features in-ground installation for an unobtrusive look and delivers reliable performance with hybrid hydraulic operation and a 180-degree opening angle. Designed for gates up to 16 feet and 1,760 pounds, this dual kit is ideal for residential estates and commercial entry points. The SBW designation ensures robust operation even in high wind areas, while the advanced E024U board provides reverse-on-contact safety and battery backup functionality.
Features:
- Full 180-degree gate opening
- Dual gate (bi-parting) configuration
- Underground, aesthetically clean setup
- Built-in safety via reverse-on-contact feature
- Hybrid electro-hydraulic operation
- SBW wind-resistant design
- Battery backup included
- Rated for UL325 Safety Standards
Specifications:
- Model: S800H SBW
- Actuator Voltage: 24 DC
- Controller Voltage: 110/115/120 AC (60 Hz)
- Power: 60 W
- Current: 7 A
- Max Torque: 442 lbf ft
- Opening Angle: 187 Degrees
- Leaf Width: 16 ft
- Leaf Weight: 1,760 lb
- Protection Rating: IP 67
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 10871515.5 |
|---|---|
| Manufacturer | FAAC International Inc. |

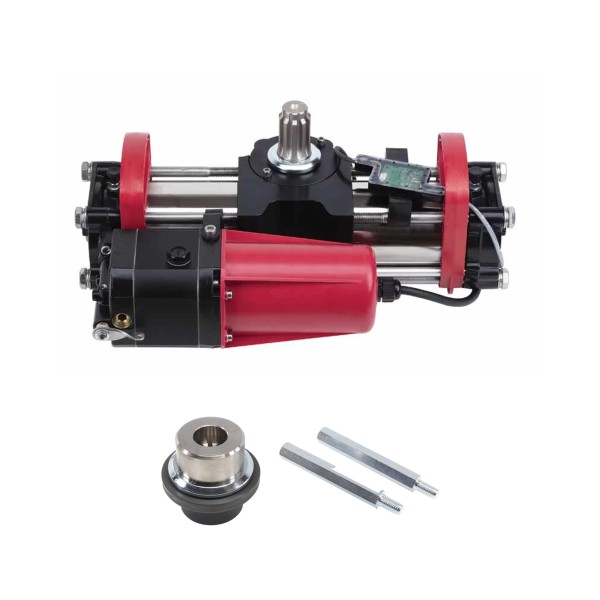

| Kit Includes | Operator, Splined Shaft Collar w/ Mounting Bolts |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Actuator Voltage | 24 DC |
| Color | Black |
| Max Gate Length | 16 ft. |
| Max Gate Weight | 1,760 lbs. |
| Max Opening Angle | 180 Degree Opening |
| In-Ground Housing | Housing Sold Separately |
| Operator Kit Type | Dual Gate Opener Kit |
| Operator Series | S800H SBW |
