S800H SBW 180° In-Ground Hydraulic Swing Gate Operator Kit - FAAC 108715.5

Availability: In stock

$2,543.52
OR

Quick Overview

This low voltage in-ground gate operator is for swing gates up to 16 feet long and 1760 pounds. It has a 180 degree opening angle. Designed and manufactured by FAAC.

S800H SBW 180 Degree In-Ground Hydraulic Swing Gate Operator Kit - FAAC 108715.5

More Views

  • S800H Gate Operator
  • Enclosure
  • Control Board
  • Transmitter (penny shown for scale)

Details

The S800H SBW 180° hydraulic gate opener is a great gate opener for in-ground applications, such as residential and condominium uses. Your gate shouldn't be covered by an above-ground operator - get your guests to notice the unique detail in your gate with this hidden operator.

This low voltage operator is for swing gates up to 16 feet and 1760 pounds. It has a 180 degree opening angle.

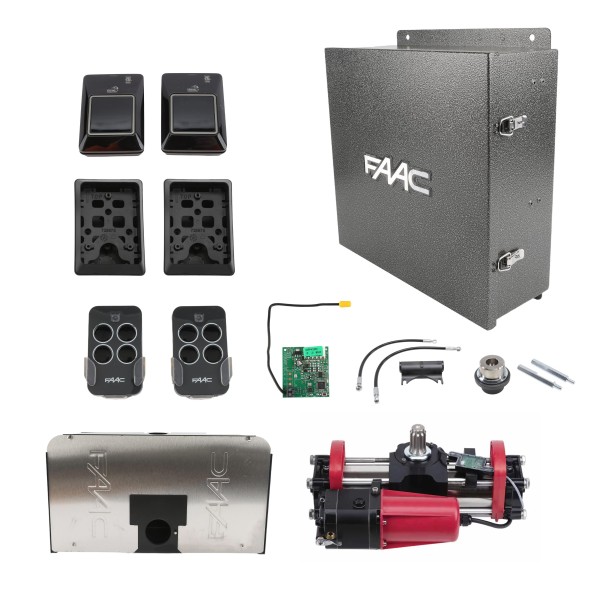

Kit Includes:

  • (1) S800H SBW Gate Operator with Accessories
  • (1) Hydraulic Manual Release
  • (1) Splined Shaft collar with Mounting Bolts
  • (1) Support Box
  • (1) E024U Control Board
  • (1) Enclosure
  • (2) Batteries 12V 8 Ah
  • (1) Power Supply
  • (1) Receiver 433 RC Plug-In
  • (2) 4-Channel Transmitters XT4 433 RC

Features:

  • Hybrid technology
  • Integrated encoder to control operator position
  • 180° opening angle
  • Opening/Closing mechanical stops integrated
  • Easy handling and installation thanks to the integrated handles
  • Maximum safety thanks to the E024U control board reverse on contact feature
  • Built in battery backup to ensure operation in case of power outage
  • SBW version for use in areas subject to strong winds
  • UL325 Listed

Technical Specs:

  • Model: S800H SBW
  • Input Voltage: 24 VDC
  • Power: 60 W
  • Current: 7 A
  • Max Torque: 442 lbf.ft (600 Nm)
  • Max Angle Speed: 8.2°/s
  • Max Opening Angle: 113° (S800H 100°) - 187° (S800H 180°)
  • Max. Leaf Width: 16 ft (4.9 m)
  • Max. Leaf Weight: 1760 lb (800 Kg)
  • Operating Ambient Temperature: -4°F ÷ 131°F (-20°C ÷ +55°C)
  • Use Frequency: Continuous
  • Projection Class: IP 67
  • Hydraulic Locks: Not Installed

While the package includes everything you need for a basic installation, other peripheral devices may be added for a more complete gate operating system. Consider adding a photobeam assembly, transmitters, receivers, and other parts for a more complete installation.

Interested in turning this single gate operator into a dual gate system? To make a master/slave (bi-parting) kit, add the following parts:

FAAC S800H Manual

FAAC S800H Brochure

Additional Information

SKU 108715.5
Manufacturer FAAC International Inc.
Operator Type Swing
Model Single Kit
Max Leaf Length 16 ft
Max Leaf Weight 1,760 lbs
Voltage 24 VDC
Mounting In-Ground
Operator Series S800H SBW
