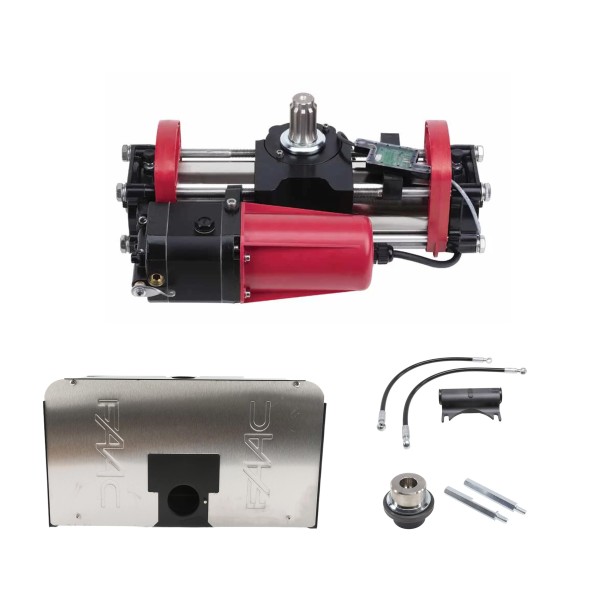

FAAC S800H Dual SBW In Support Box 180 Degree In-Ground Hydraulic Swing Gate Opener Secondary Kit (16ft / 1760 lbs.) - FAAC 108715151.5
Details
FAAC S800H Dual SBW In Support Box 180 Degree In-Ground Hydraulic Swing Gate Opener Secondary Kit (16ft / 1760 lbs.) - FAAC 108715151.5
Designed to complete a dual gate automation setup, the FAAC S800H SBW 180 Degree Dual Secondary Kit installs in-ground for a discreet, architecturally clean appearance. It supports gates up to 16 feet and 1,760 pounds, with a generous 180-degree swing range and hybrid hydraulic performance. The SBW wind-rated version ensures confident operation in exposed environments, while safety features like reverse-on-contact from the E024U board help prevent accidents. This is a versatile and low voltage swing gate opener for residential driveways, estates, or commercial properties that need a seamless dual gate automation upgrade.
Features:
- Hybrid electro-hydraulic drive system
- 180-degree full range gate movement
- Built-in battery backup for continued use during outages
- Encoder-controlled positioning and mechanical stops
- SBW wind-resistant model for outdoor stability
- Reverse-on-contact safety via E024U control board
- Rated for UL325 Safety Standards
Technical Specs:
- Model: S800H SBW
- Input Voltage For Gate Actuator: 24 DC
- Input Voltage For Gate Controller: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 60 W
- Current: 7 A
- Max Torque: 442 lbf.ft (600 Nm)
- Max Angle Speed: 8.2 Degrees /s
- Max Opening Angle: 187 Degrees
- Max. Leaf Width: 16 ft (4.9 m)
- Max. Leaf Weight: 1760 lb (800 Kg)
- Operating Ambient Temperature: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Use Frequency: Continuous
- Projection Class: IP 67
- Hydraulic Locks: Not Installed
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 108715151.5 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Kit Includes | Conductor Cable(s), Hydraulic Manual Release, Junction Box, Operator, Splined Shaft Collar w/ Mounting Bolts, Support Box |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Actuator Voltage | 24 DC |
| Color | Stainless Steel |
| Max Gate Length | 16 ft. |
| Max Gate Weight | 1,760 lbs. |
| Max Opening Angle | 180 Degree Opening |
| In-Ground Housing | Standard Steel Housing |
| Operator Kit Type | Dual Gate Opener Kit |
| Operator Series | S800H SBW |
