S800H SBW 180 Degree In-Ground Hydraulic Swing Gate Opener Secondary Kit (In Stainless Steel Support Box) - FAAC 108715151.5SS
Details
S800H SBW 180 Degree In-Ground Hydraulic Swing Gate Opener Secondary Kit (In Stainless Steel Support Box) - FAAC 108715151.5SS
Crafted for use as the secondary unit in a dual swing gate opener system, this FAAC S800H SBW 180 Degree Kit features a premium stainless steel support box for increased environmental protection. Capable of handling gates up to 16 feet and 1,760 pounds, it operates with precision and strength thanks to its hybrid technology and 180-degree swing range. This low voltage gate opener package is perfect for high-end residential driveways or commercial entryways that demand clean aesthetics and powerful automation. The SBW build ensures high performance in windy locations, with built-in safety and backup features to keep things running smoothly.
Features:
- Stainless steel construction for enhanced longevity
- 180-degree full gate swing angle
- Hybrid technology with mechanical stops and encoders
- SBW model for wind resistance
- Battery backup for uninterrupted function
- Reverse-on-contact safety with E024U controller
- Rated for UL325 Safety Standards
Technical Specs:
- Model: S800H SBW
- Input Voltage: 24 VDC
- Power: 60 W
- Current: 7 A
- Max Torque: 442 lbf.ft (600 Nm)
- Max Angle Speed: 8.2 Degrees /s
- Max Opening Angle: 187 Degrees
- Max. Leaf Width: 16 ft (4.9 m)
- Max. Leaf Weight: 1760 lb (800 Kg)
- Operating Ambient Temperature: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Use Frequency: Continuous
- Projection Class: IP 67
- Hydraulic Locks: Not Installed
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 108715151.5SS |
|---|---|
| Manufacturer | FAAC International Inc. |

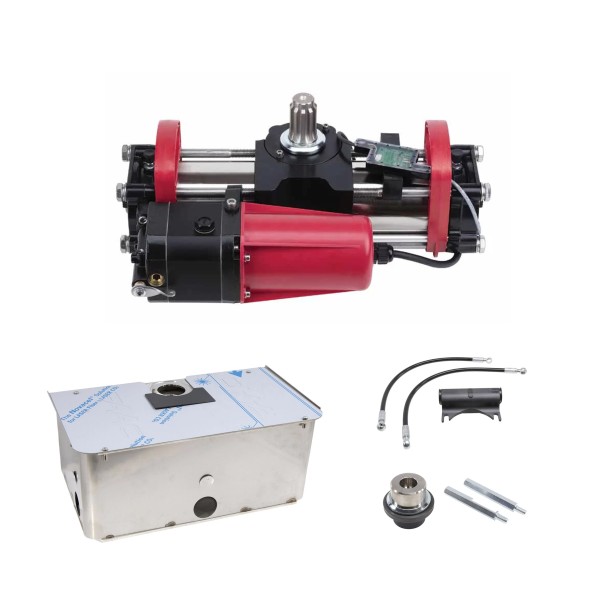

| Kit Includes | Conductor Cable(s), Hydraulic Manual Release, Junction Box, Operator, Splined Shaft Collar w/ Mounting Bolts, Support Box |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Color | Stainless Steel |
| Max Gate Length | 16 ft. |
| Max Gate Weight | 1,760 lbs. |
| Max Opening Angle | 180 Degree Opening |
| Operator Kit Type | Dual Gate Opener Kit |
| Operator Series | S800H SBW |
