S800H ENC SBW 100° In-Ground Hydraulic Swing Gate Operator Only - FAAC 108724

Availability: In stock

$1,208.48
OR

Quick Overview

This low voltage operator is for swing gates up to 16 feet and 1760 pounds. It features a 100 degree opening angle. This in-ground unit won't take away the classy feel of your entry way!

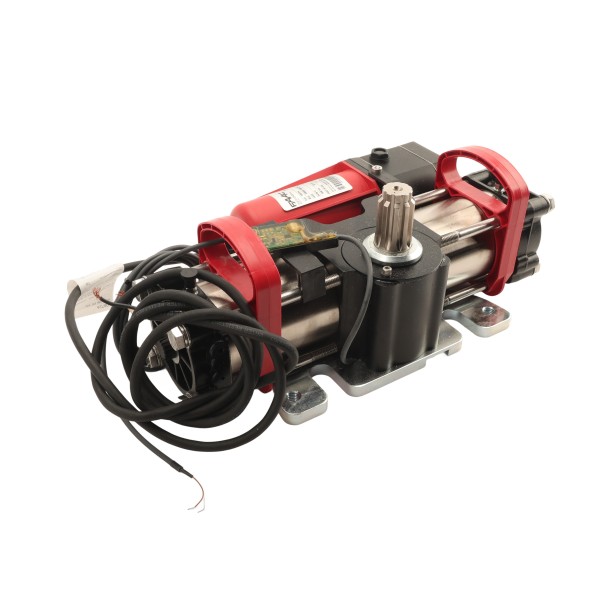

S800H SBW 100° In-Ground Hydraulic Swing Gate Operator Only - FAAC 10871415

Details

Use the S800H 100° swing gate operator to turn your single kit operator kit into a master/slave (bi-parting) kit, or use it as a replacement operator. This in-ground unit won't take away the classy feel of your entry way!

This low voltage operator is for swing gates up to 16 feet and 1760 pounds. It features a 100 degree opening angle.

Features:

  • Hybrid technology
  • Integrated encoder to control operator position
  • Improved encoder to track the gate movement and to guarantee the maximum safety and reliability of the system
  • 100° opening angle
  • Opening/Closing mechanical stops integrated
  • Easy handling and installation thanks to the integrated handles
  • Maximum safety thanks to the E024U control board reverse on contact feature
  • Built in battery backup to ensure operation in case of power outage
  • SBW version for use in areas subject to strong winds
  • UL325 Listed

Technical Specs:

  • Model: S800H SBW
  • Input Voltage: 24 VDC
  • Power: 60 W
  • Current: 7 A
  • Max Torque: 442 lbf.ft (600 Nm)
  • Max Angle Speed: 8.2°/s
  • Max Opening Angle: 113° (S800H 100°) - 187° (S800H 180°)
  • Max. Leaf Width: 16 ft (4.9 m)
  • Max. Leaf Weight: 1760 lb (800 Kg)
  • Operating Ambient Temperature: -4°F ÷ 131°F (-20°C ÷ +55°C)
  • Use Frequency: Continuous
  • Projection Class: IP 67
  • Hydraulic Locks: Not Installed

FAAC S800H Manual

FAAC S800H Brochure

Additional Information

SKU 108724
Old SKU 10871415
Manufacturer FAAC International Inc.
Operator Type Swing
Model Operator Only
Max Leaf Length 16 ft
Max Leaf Weight 1,760 lbs
Voltage 24 VDC
Mounting In-Ground
Operator Series S800H SBW
