FAAC 400 CBAC EG Long Hydraulic Swing Gate Opener Kit with Arctic Oil 115V (18ft / 1500 lbs.) - FAAC 1042021277.5
Perfect for apartment, subdivision, commercial, condo, industrial and residential use, the 400 CBAC EG long gate operator from FAAC features quiet operation, key protected manual release, and self lubrication.
Operates swing gates up to 18 feet long and 1500 lbs.

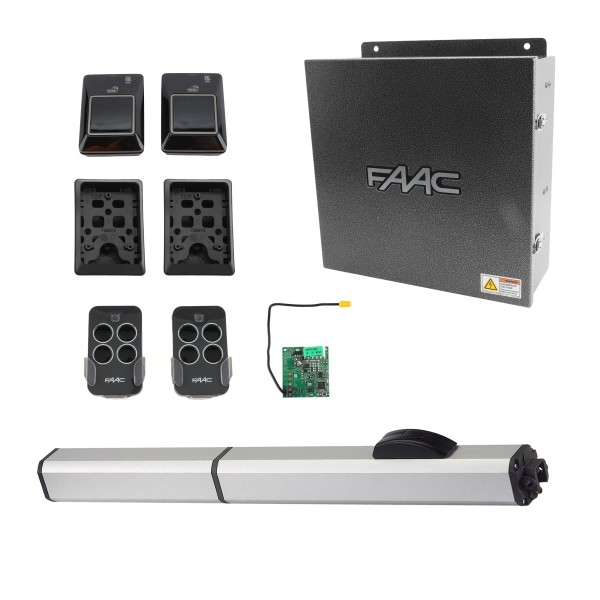

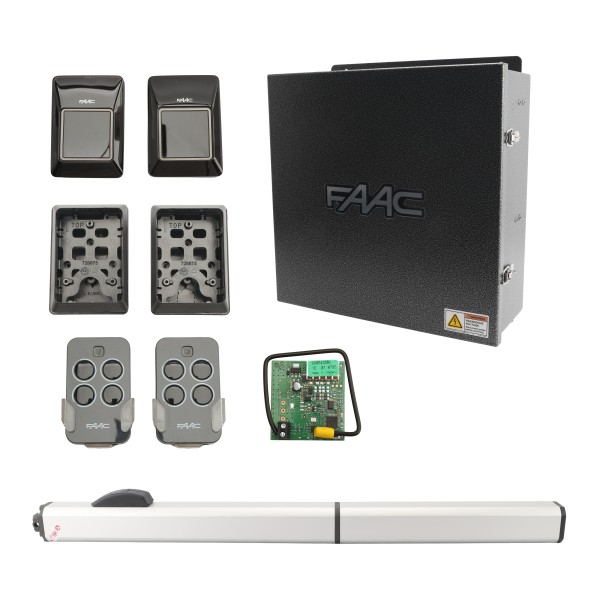

Kit Includes:
- (1) 400 CBAC EG Operator
- (1) 455D Control Board - 115V
- (1) 14" x 16" Pre-Wired Enclosure
- (1) Receiver - 433 RC Plug-In
- (2) 4-Channel Transmitters - XT4 433 RC
Features:
- Wide and versatile range from residential to heavy industrial gates
- Hydraulic lock of the gate in open and/or closed positions
- Quiet operation
- Self lubricating for long life
- Key protected manual release
- Arctic oil
Technical Specs:
- Actuator Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Controller Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 2 A
- Motor Rotation Speed: 1400 r.p.m.
- Thrust Capacitor: 25 uF
- Operating Ambient Temperature: -33 Degrees F to 165 Degrees F (-36 Degrees C to +75 Degrees C)
- Thermal Protection on Motor: 248 Degrees F (120 Degrees C)
- Protection Class: IP 55
- Dimensions: 50.6 x 4.4 x 3.3 in (1,285x113x85 mm)
- Hydraulic Locking: Opening and closing
- Maximum Leaf Length: 18 ft (5.5 m)
- Maximum Leaf Weight: 1500 lb (680 Kg)
- Thrust Force: 1045 lbf (465 daN)
- Pump Flow Rate (l/min): 1.5
- Rod Extension Speed: 0.6 in/sec (1.5 cm/sec)
- Effective Rod Stroke: 15 in (380mm)
- Use Frequency (cycles per hour): 50
Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following part:
- 400 CBAC EG Gate Operator Only (part number 1042021277)
| SKU | 1042021277.5 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Operator Type | Swing |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Max Gate Length | 18 ft. |
| Max Gate Weight | 1,500 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Oil Type | Arctic Oil |
| Mounting | Linear Arm |
| Operator Series | 400 CBAC EG |
