FAAC 400 CBAC EG Long Hydraulic Swing Gate Opener Kit with Arctic Oil 230V (18ft / 1500 lbs.) - FAAC 104202177.5
Details
FAAC 400 CBAC EG Long Hydraulic Swing Gate Opener Kit with Arctic Oil 230V (18ft / 1500 lbs.) - FAAC 104202177.5
Engineered for challenging environments, the FAAC 400 CBAC EG Long Hydraulic Swing Gate Opener Kit with Arctic Oil (230V) is the perfect solution for large gates exposed to cold climates. Supporting swing gates up to 18 feet and 1500 pounds, this electric gate opener kit combines high power with low maintenance thanks to its hydraulic operation and Arctic Oil formulation. It is ideal for use as a commercial swing gate operator, an automatic farm gate opener, or for heavy-duty residential installations. With its high cycle rating and strong thrust force, this swing gate kit for metal gates ensures dependable performance across demanding applications.
Features:
- Engineered for cold weather performance with Arctic Oil
- Accommodates long, heavy gate leaves with ease
- Hydraulic locking in both directions
- Key-access manual release for safety
- Low-maintenance, self-lubricating hydraulic system
Technical Specs:
- Actuator Input Voltage: 220/230/240 AC (60 Hz, 1 Phase)
- Controller Input Voltage: 220/230/240 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 1 A
- Motor Rotation Speed: 1400 r.p.m.
- Thrust Capacitor: 8 uF
- Operating Ambient Temperature: -33 Degrees F to 165 Degrees F (-36 Degrees C to +75 Degrees C)
- Thermal Protection on Motor: 248 Degrees F (120 Degrees C)
- Protection Class: IP 55
- Dimensions: 50.6 x 4.4 x 3.3 in (1,285x113x85 mm)
- Hydraulic Locking: Opening and closing
- Maximum Leaf Length: 18 ft (5.5 m)
- Maximum Leaf Weight: 1500 lb (680 Kg)
- Thrust Force: 1045 lbf (465 daN)
- Pump Flow Rate: 1.5 l/min
- Rod Extension Speed: 0.6 in/sec (1.5 cm/sec)
- Effective Rod Stroke: 15 in (380 mm)
- Use Frequency: 50 cycles/hour
Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following part:
- 400 CBAC EG Gate Operator Only (part number 104202177)
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 104202177.5 |
|---|---|
| Manufacturer | FAAC International Inc. |

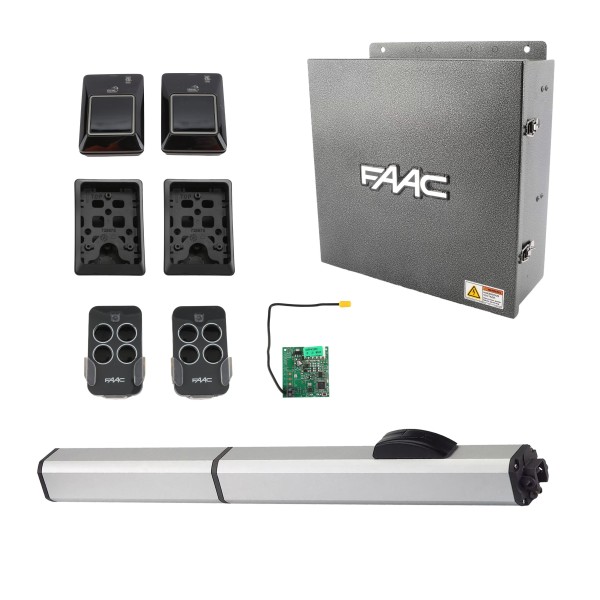

| Kit Includes | Conduit Adapter, Control Board w/ Enclosure, Operator, Photobeam Photocell(s), Receiver, Transmitter |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Color | Stainless Steel |
| Max Gate Length | 18 ft. |
| Max Gate Weight | 1,500 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Oil Type | Arctic Oil |
| Operator Series | 400 CBAC EG |
